TPS2376-H Series

Class 3 PoE PD with adjustable UVLO threshold & latch protection

Catalog

Class 3 PoE PD with adjustable UVLO threshold & latch protection

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Current - Supply	Mounting Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Power - Max [Max]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Standards	Package / Case [y]	Package / Case [x]	Supplied Contents	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Main Purpose	Power - Output	Utilized IC / Part	Regulator Topology	Voltage - Output	Current - Output
Texas Instruments TPS2376PW	85 °C	-40 °C	1	240 µA	Surface Mount	8-TSSOP	0.173 "	4.4 mm	12.95 W	8-TSSOP	0 V	57 V	802.3af (PoE)
Texas Instruments TPS2376PWRG4	85 °C	-40 °C	1	240 µA	Surface Mount	8-TSSOP	0.173 "	4.4 mm	12.95 W	8-TSSOP	0 V	57 V	802.3af (PoE)
Texas Instruments TPS2376PWG4	85 °C	-40 °C	1	240 µA	Surface Mount	8-TSSOP	0.173 "	4.4 mm	12.95 W	8-TSSOP	0 V	57 V	802.3af (PoE)
Texas Instruments TPS2376DG4	85 °C	-40 °C	1	240 µA	Surface Mount	8-SOIC			12.95 W	8-SOIC	0 V	57 V	802.3af (PoE)	3.9 mm	0.154 in

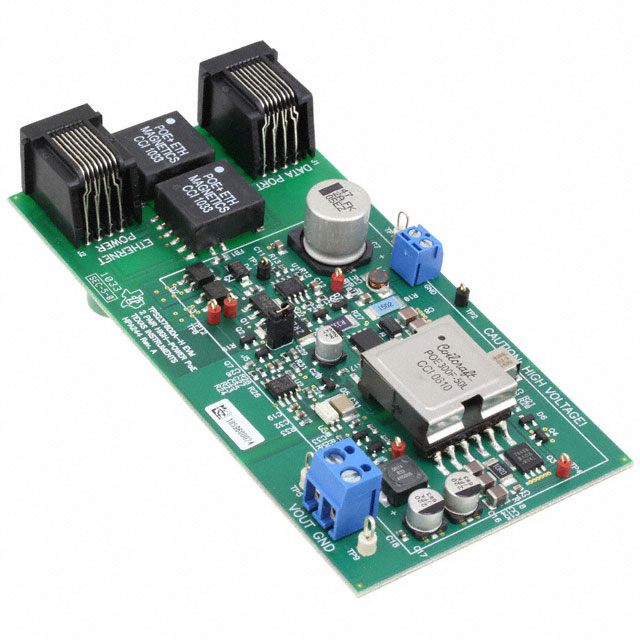

Texas Instruments TPS2376HEVM																Board(s)	300 kHz	Isolated	1	41 V	57 V	Fully Populated	Power Over Ethernet Special Purpose DC/DC	25 W	TPS2376	Buck	5 V	5 A
Texas Instruments TPS2376DDAR-H	85 °C	-40 °C	1	240 µA	Surface Mount	8-PowerSOIC			12.95 W	8-SO PowerPad	0 V	57 V	802.3af (PoE)	3.9 mm	0.154 in
Texas Instruments TPS2376DR	85 °C	-40 °C	1	240 µA	Surface Mount	8-SOIC			12.95 W	8-SOIC	0 V	57 V	802.3af (PoE)	3.9 mm	0.154 in
Texas Instruments TPS2376D	85 °C	-40 °C	1	240 µA	Surface Mount	8-SOIC			12.95 W	8-SOIC	0 V	57 V	802.3af (PoE)	3.9 mm	0.154 in

Catalog

Class 3 PoE PD with adjustable UVLO threshold & latch protection

Key Features

• Fully Supports IEEE 802.3af SpecificationIntegrated 0.58-Ω, 100-V, Low-Side Switch15-kV System Level ESD CapableSupports Use of Low-Cost Silicon RectifiersProgrammable Inrush Current ControlFixed 450-mA Current LimitFixed and Adjustable UVLO OptionsOpen-Drain, Power-Good ReportingOvertemperature ProtectionIndustrial Temperature Range: –40°C to 85°C8-Pin SOIC and TSSOP PackagesAPPLICATIONSVoIP PhonesWLAN Access PointsSecurity CamerasInternet AppliancesPOS TerminalsFully Supports IEEE 802.3af SpecificationIntegrated 0.58-Ω, 100-V, Low-Side Switch15-kV System Level ESD CapableSupports Use of Low-Cost Silicon RectifiersProgrammable Inrush Current ControlFixed 450-mA Current LimitFixed and Adjustable UVLO OptionsOpen-Drain, Power-Good ReportingOvertemperature ProtectionIndustrial Temperature Range: –40°C to 85°C8-Pin SOIC and TSSOP PackagesAPPLICATIONSVoIP PhonesWLAN Access PointsSecurity CamerasInternet AppliancesPOS Terminals

Description

These easy-to-use 8-pin integrated circuits contain all of the features needed to develop an IEEE 802.3af compliant powered device (PD). The TPS2375 family is a second generation PDC (PD Controller) featuring 100-V ratings and a true open-drain, power-good function. In addition to the basic functions of detection, classification and undervoltage lockout (UVLO), these controllers include an adjustable inrush limiting feature. The TPS2375 has 802.3af compliant UVLO limits, the TPS2377 haslegacyUVLO limits, and the TPS2376 has a programmable UVLO with a dedicated input pin. The TPS2375 family specifications incorporate a voltage offset of 1.5 V between its limits and the IEEE 802.3af specifications to accommodate the required input diode bridges used to make the PD polarity insensitive. Additional resources can be found on the TI Web site www.ti.com. These easy-to-use 8-pin integrated circuits contain all of the features needed to develop an IEEE 802.3af compliant powered device (PD). The TPS2375 family is a second generation PDC (PD Controller) featuring 100-V ratings and a true open-drain, power-good function. In addition to the basic functions of detection, classification and undervoltage lockout (UVLO), these controllers include an adjustable inrush limiting feature. The TPS2375 has 802.3af compliant UVLO limits, the TPS2377 haslegacyUVLO limits, and the TPS2376 has a programmable UVLO with a dedicated input pin. The TPS2375 family specifications incorporate a voltage offset of 1.5 V between its limits and the IEEE 802.3af specifications to accommodate the required input diode bridges used to make the PD polarity insensitive. Additional resources can be found on the TI Web site www.ti.com.
