430500 Series

Catalog

CONN BARRIER STRIP 4CIRC 0.438"

Part	Terminal Screw Finish	Terminal Screw Material	Material Flammability Rating	Operating Temperature	Material - Insulation	Mounting Type	Current Rating (Amps)	Number of Rows	Features	Bottom Termination	Bottom Termination	Number of Wire Entries	Terminal Block Type	Top Termination	Number of Circuits	Barrier Type	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]

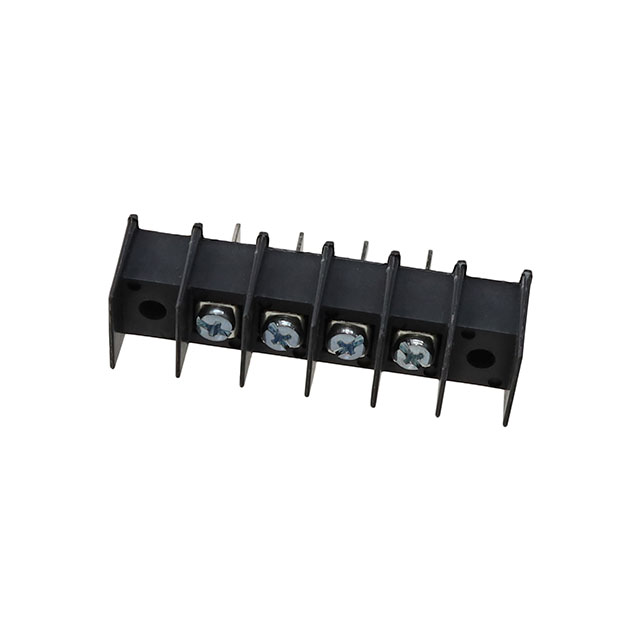

Curtis Industries 430500-04-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect	4	Barrier Block	Screws	4	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm
Curtis Industries 430500-21-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect	21	Barrier Block	Screws	21	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm
Curtis Industries 430500-24-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect		Barrier Block	Screws	24	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm

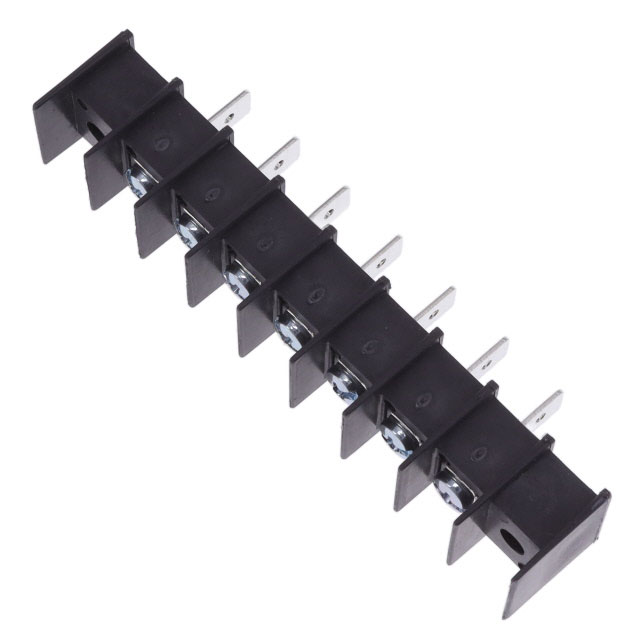

Curtis Industries 430500-07-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect		Barrier Block	Screws	7	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm	7

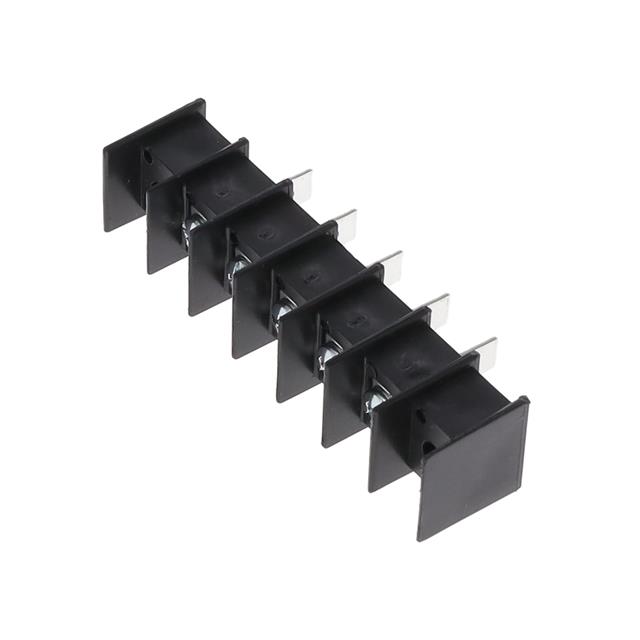

Curtis Industries 430500-05-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect	5	Barrier Block	Screws	5	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm
Curtis Industries 430500-18-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect	18	Barrier Block	Screws	18	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm
Curtis Industries 430500-16-0	Zinc	Steel	UL94 V-0	105 C	Polypropylene (PP)	Chassis Panel	20 A	1	Flange	0.25 in	Quick Connect	16	Barrier Block	Screws	16	2 Wall (Dual)	22 AWG	12 AWG	600 V	0.438 in	11.12 mm
