ESANML2G Series

Catalog

SWITCH PB SPST-NO 0.125A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Ingress Protection	Actuator Type	Switch Function	Voltage Rating - DC	Mounting Type	Illumination Voltage (Nominal)	Actuator Marking	Type	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Termination Style	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch ESANML2GBB	1000000 Cycles	500000 Cycles	125 V	IP67 - Dust Tight Waterproof	Button Round	Off-Mom	50 VDC	Panel Mount Front	3.2 VDC	No Marking	Illuminated Standard	125 mA	SPST-NO	Black	13.6 mm	Solder Lug	Blue LED	85 °C	-30 ░C

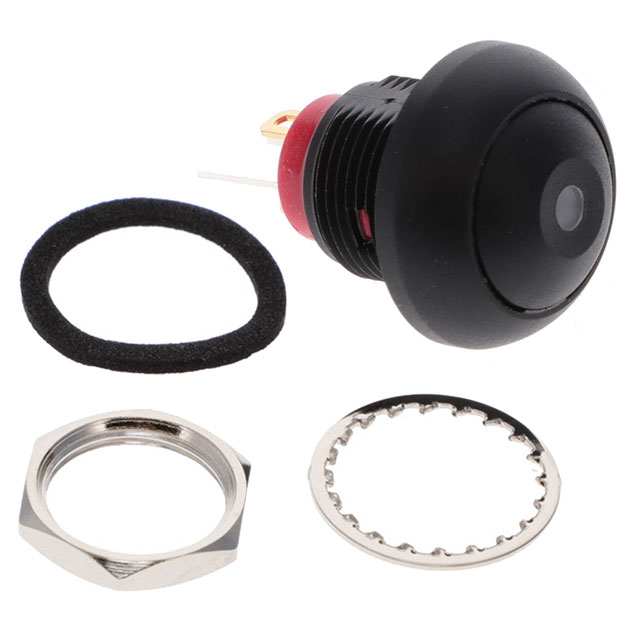

CIT Relay and Switch ESANML2GBR	1000000 Cycles	500000 Cycles	125 V	IP67 - Dust Tight Waterproof	Button Round	Off-Mom	50 VDC	Panel Mount Front	2.1 VDC	No Marking	Illuminated Standard	125 mA	SPST-NO	Black	13.6 mm	Solder Lug	LED Red	85 °C	-30 ░C
