ADV-127 Series
Manufacturer: European Thermodynamics Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

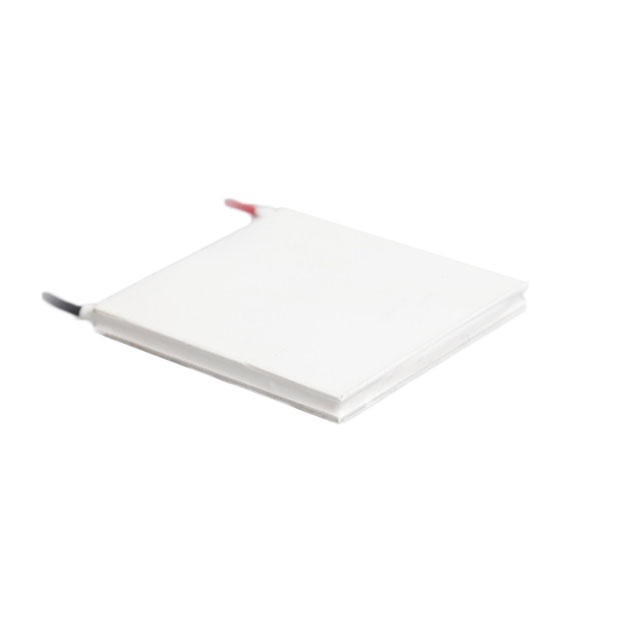

TE MODULE,127 COUPLES,SILICONE
| Part | Voltage - Max | Size / Dimension Width | Size / Dimension Shape | Size / Dimension Length | Features | Maximum Power Dissipation (Qmax) | Operating Temperature | Type | Number of Stages | Delta Tmax | Current - Max | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 European Thermodynamics Ltd | 15.4 V | 40 mm | Square | 40 mm | Lead Wires Sealed Silicone | 68.5 W | 80 °C | TEC (Thermoelectric Cooler) | 1 | 65 °C | 8 A | 3.5 mm |
European Thermodynamics Ltd | 15.4 V | 40 mm | Square | 40 mm | Lead Wires Sealed Silicone | 51 W | 80 °C | TEC (Thermoelectric Cooler) | 1 | 65 °C | 6 A | 3.8 mm |
European Thermodynamics Ltd | 15.4 V | 40 mm | Square | 40 mm | Lead Wires Sealed Silicone | 42.8 W | 80 °C | TEC (Thermoelectric Cooler) | 1 | 65 °C | 5 A | 3.9 mm |
European Thermodynamics Ltd | 15.4 V | 40 mm | Square | 40 mm | Lead Wires Sealed Silicone | 34.2 W | 80 °C | TEC (Thermoelectric Cooler) | 1 | 65 °C | 4 A | 4.2 mm |
