846-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K

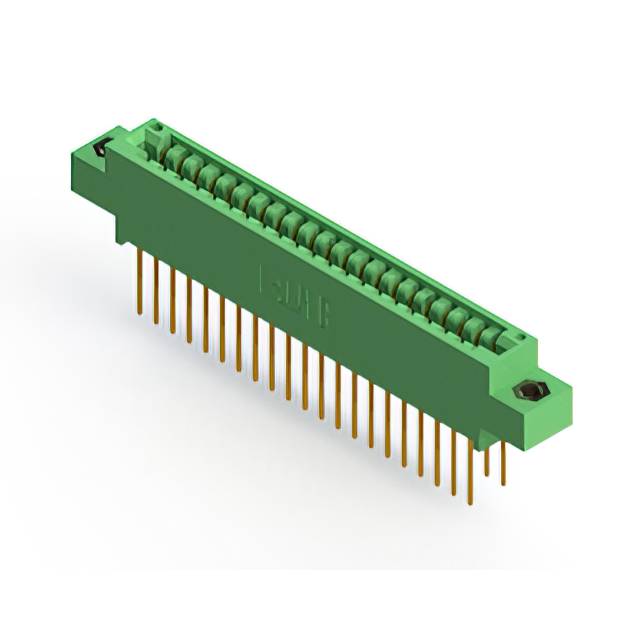

CONN EDGE SGL FMALE 42POS 0.125
| Part | Termination Rows | Material - Insulation | Color | Termination | Number of Positions/Bay/Row | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Read Out | Number of Positions | Gender | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Card Type | Contact Finish | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | Solder | 42 | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Single | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | M3 Threaded Insert Top Mount Opening | 2 | 2 | 21 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 | 21 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | Solder | 42 | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Single | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | |||||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | Solder | 42 | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Single | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | 0.128 " | 3.25 mm | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | Solder | 42 | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Single | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | M3 Threaded Insert Top Mount Opening | 2 | 2 | 21 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | Non Specified - Dual Edge | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 2 | 2 | 21 | Card Extender | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | Solder | 42 | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Single | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | 42 | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 | 21 |
