PME264 Series

Manufacturer: KEMET

Catalog

SAFETY CAPACITORS 1500V 0.1UF 20% LS=25.4MM

Part	Tolerance	Voltage Rating - AC	Mounting Type	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Applications	Ratings	Package / Case	Termination	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max]
KEMET PME264NE6100MR06
KEMET PME264NE6100KR30	10 %	660 V	Through Hole	25.4 mm	1 in	85 °C	-40 C	0.866 in	22 mm	EMI RFI Suppression	X2	Radial	PC Pins	100000 pF	1.5 kV	1.5 kV	Metallized Paper	30.5 mm	15.3 mm	0.602 in	1.201 in

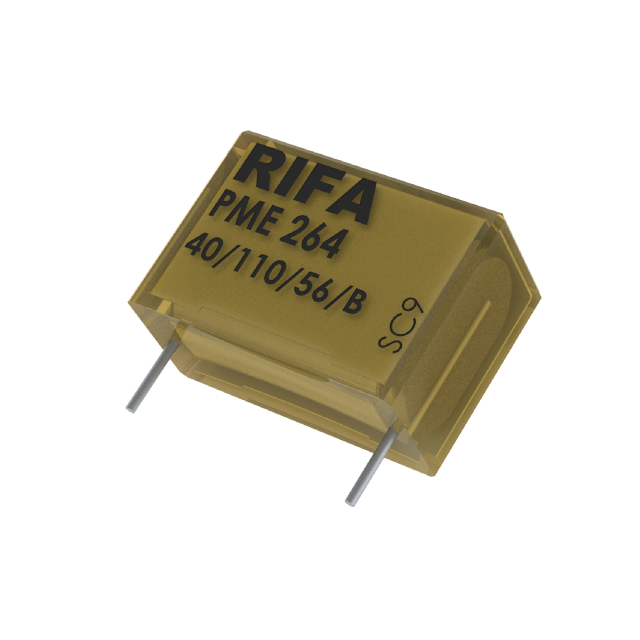

KEMET PME264NC5220MR30	20 %	660 V	Through Hole	20.3 mm	0.799 in	85 °C	-40 C			EMI RFI Suppression	X2	Radial	PC Pins	0.022 µF	1.5 kV	1.5 kV	Metallized Paper	24 mm		0.354 in	0.945 "	15 mm	0.591 "	9 mm
KEMET PME264NE5470MR30	20 %	660 V	Through Hole	25.4 mm	1 in	85 °C	-40 C			EMI RFI Suppression	X2	Radial	PC Pins				Metallized Paper	30.5 mm	10.5 mm	0.413 in	1.201 in		0.669 "		17 mm
