Z-221 Series

Catalog

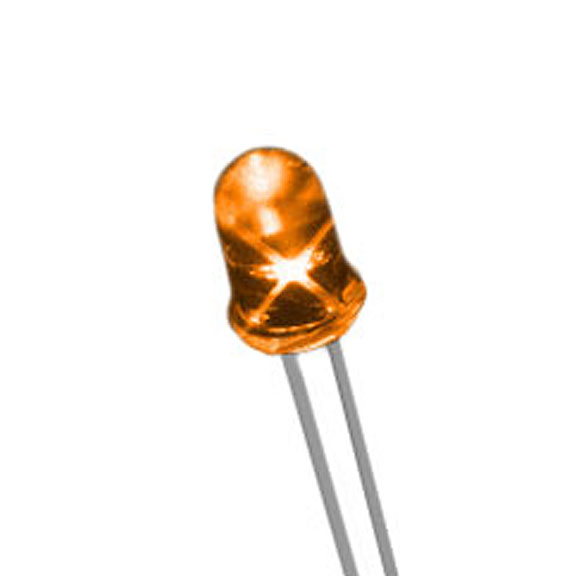

LED ORANGE DIFFUSED T-1 3/4 T/H

Part	Package / Case	Lens Transparency	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Style	Configuration	Lens Size	Lens Size	Supplier Device Package	Viewing Angle	Lens Color	Current - Test	Mounting Type	Height (Max) [Max] [z]	Millicandela Rating	Color
JKL Components Corp. Z-221O	Radial	Diffused	610 nm	2 V	Round with Domed Top	Standard	5 mm	T-1 3/4	T-1 3/4	120 °	Orange	10 mA	Through Hole	9.6 mm	20 mcd
JKL Components Corp. Z-221A	Radial	Diffused	585 nm	2.1 V	Round with Domed Top	Standard	5 mm	T-1 3/4	T-1 3/4	120 °	Amber	10 mA	Through Hole	9.6 mm	20 mcd	Amber
JKL Components Corp. Z-221RH	Radial	Diffused		2 V	Round with Domed Top	Standard	5 mm	T-1 3/4	T-1 3/4	120 °	Red	10 mA	Through Hole	9.6 mm	20 mcd	Red
