150072 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

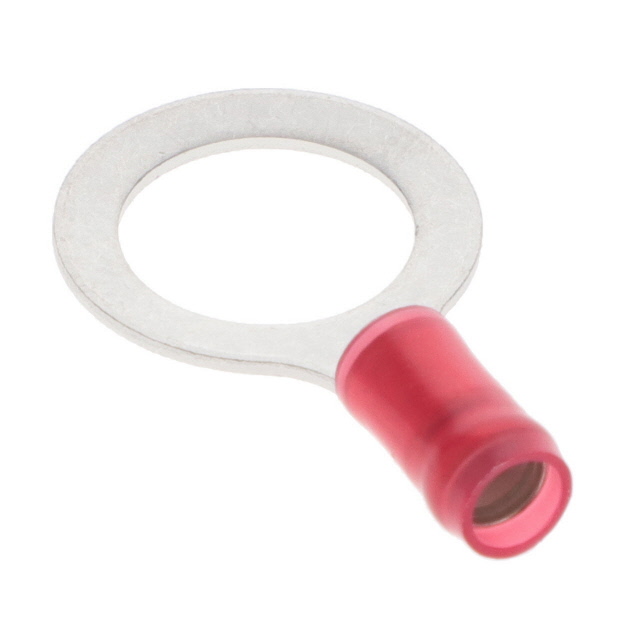

CONN RING CIRC 18-22AWG #7/16
| Part | Contact Finish | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Thickness | Thickness | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Contact Material | Color | Stud/Tab Size | Terminal Type | Features | Mounting Type | Termination | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 1.172 in | 29.77 mm | 16.66 mm | 0.656 in | Nylon Polyamide (PA) | 22 AWG | 17.5 AWG | 0.033 in | 0.84 mm | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Copper | Red | 7/16 Stud | Circular | Serrated Termination | Free Hanging (In-Line) | Crimp | Insulated |
