DCD300P Series
Manufacturer: Vicor Corporation
Beta
⌘K
EVAL BRD FOR DCM300P120T400A40
| Part | Outputs and Type | Outputs and Type | Board Type | Power - Output | Supplied Contents | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Voltage - Output | Contents | Main Purpose | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

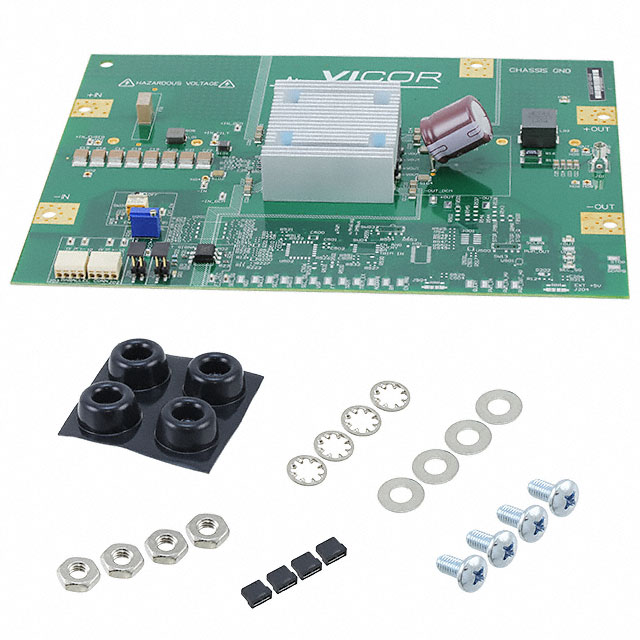

 Vicor Corporation | 1 Isolated Output Isolated | 1 | Fully Populated | 400 W | Board(s) | 180 VDC | 420 V | 33.4 A | 12 V | Board(s) | DC/DC Step Down | Buck | DCM300P120x400A40 |

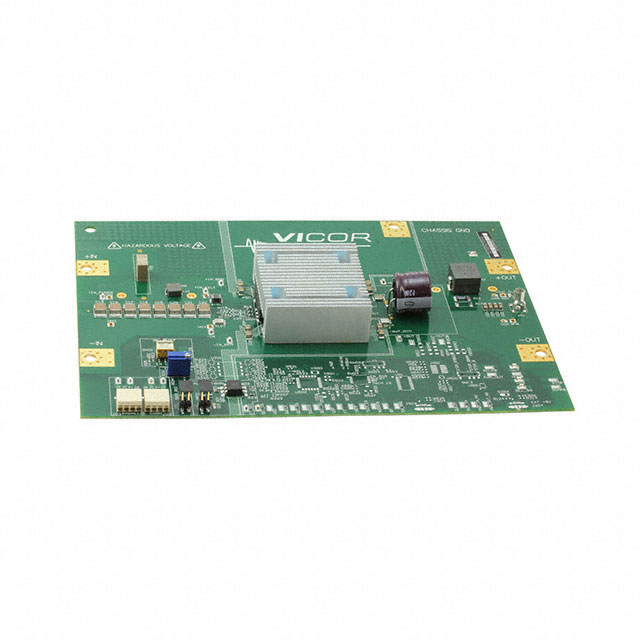

 Vicor Corporation | 1 Isolated Output Isolated | 1 | Fully Populated | 500 W | Board(s) | 200 VDC | 420 V | 17.86 A | 28 V | Board(s) | DC/DC Step Down | Buck | DCM300P280x500A40 |

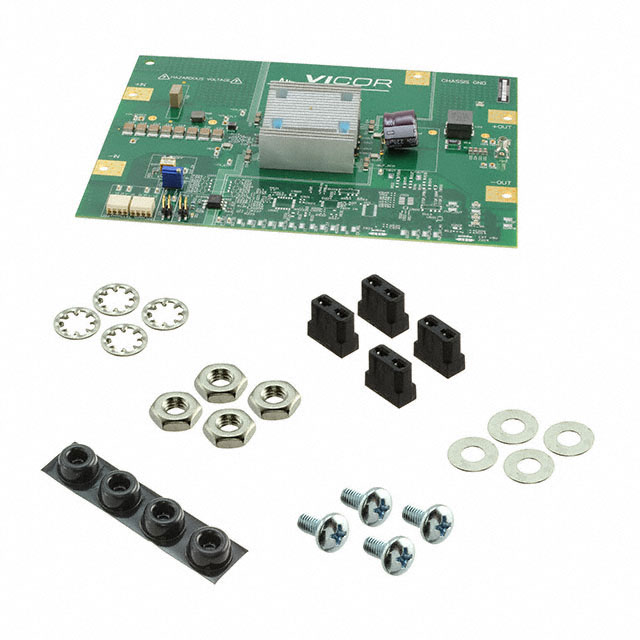

 Vicor Corporation | 1 Isolated Output Isolated | 1 | Fully Populated | 500 W | Board(s) | 200 VDC | 420 V | 10.5 A | 48 V | Board(s) | DC/DC Step Down | Buck | DCM300P480x500A40 |
 Vicor Corporation | 1 Isolated Output Isolated | 1 | Fully Populated | 600 W | Board(s) | 200 VDC | 420 V | 25 A | 24 V | Board(s) | DC/DC Step Down | Buck | DCM300P240x600A40 |
