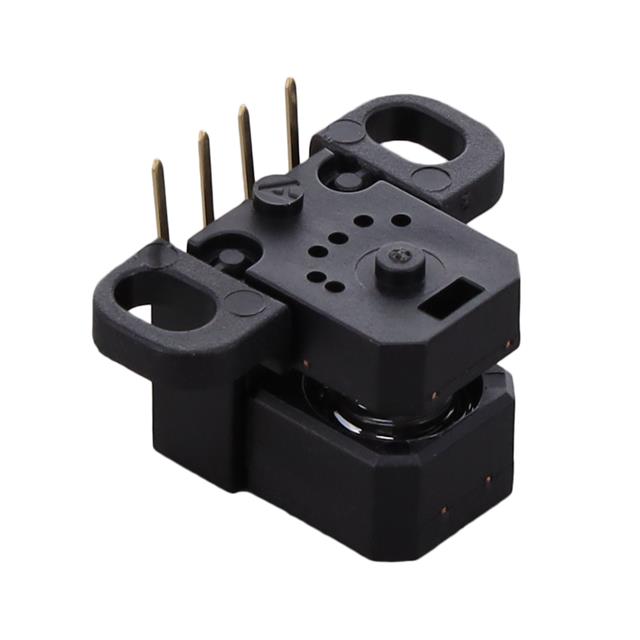

HEDS-9731 Series

Catalog

ROTARY ENCODR OPTICAL 360 LPI

Part	Encoder Type	Output Type	Actuator Type	Orientation	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Pulses per Revolution	Mounting Type
Broadcom Limited HEDS-9731#150	Optical	Quadrature (Incremental)	Codestrip Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	360	Chassis Mount
Broadcom Limited HEDS-9731#Q50	Optical	Quadrature (Incremental)	Codestrip Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	180 LPI	Chassis Mount
Broadcom Limited HEDS-9731-350	Optical	Quadrature (Incremental)	Codestrip Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	480 LPI	Chassis Mount
Broadcom Limited HEDS-9731#J54	Optical	Quadrature (Incremental)	Codewheel Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	1024	Chassis Mount
Broadcom Limited HEDS-9731#252	Optical	Quadrature (Incremental)	Codestrip Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	300	Chassis Mount
Broadcom Limited HEDS-9731#J51	Optical	Quadrature (Incremental)	Codewheel Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	1024	Chassis Mount
Broadcom Limited HEDS-9731#B54	Optical	Quadrature (Incremental)	Codewheel Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	1000	Chassis Mount
Broadcom Limited HEDS-9731#250	Optical	Quadrature (Incremental)	Codestrip Not Included	Right Angle	2.8 V	5.2 V	Terminal Pins	300	Chassis Mount
