1393641 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN DIN RCPT 64POS PCB GOLD

Part	Material Flammability Rating	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Style	Pitch	Pitch	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Number of Rows [custom]	Number of Positions Loaded	Termination	Connector Type	Level, Class [custom]	Contact Finish	Number of Positions Loaded	Number of Positions	Features
TE Connectivity AMP Connectors 6-1393641-3	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	M	0.1 "	2.54 mm	60	4	Through Hole	3	12	Solder	Receptacle Female Sockets	1	Gold Gold-Palladium

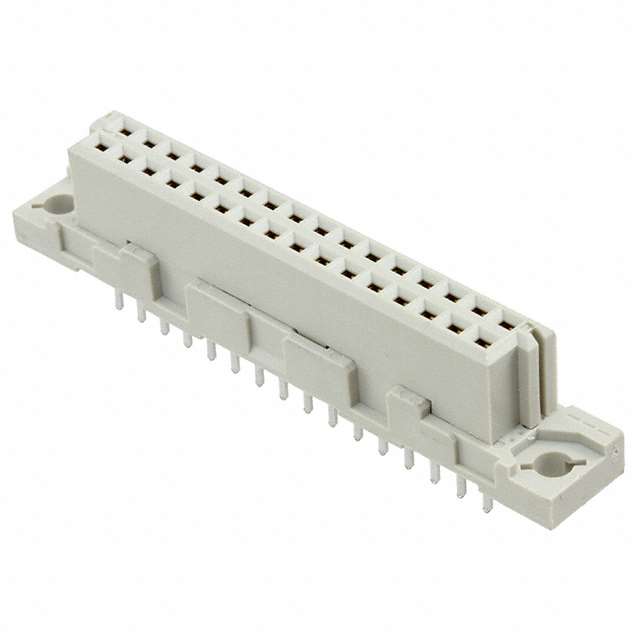

TE Connectivity AMP Connectors 1-1393641-1	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	B	0.1 "	2.54 mm			Through Hole	2		Solder	Receptacle Female Sockets		Gold Gold-Palladium	All
TE Connectivity AMP Connectors 3-1393641-7	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	C	0.1 "	2.54 mm			Through Hole	3		Solder	Receptacle Female Sockets		Gold Gold-Palladium	All	96
TE Connectivity AMP Connectors 3-1393641-1	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	C	0.1 "	2.54 mm			Through Hole	3		Solder	Receptacle Female Sockets		Gold Gold-Palladium	All	96

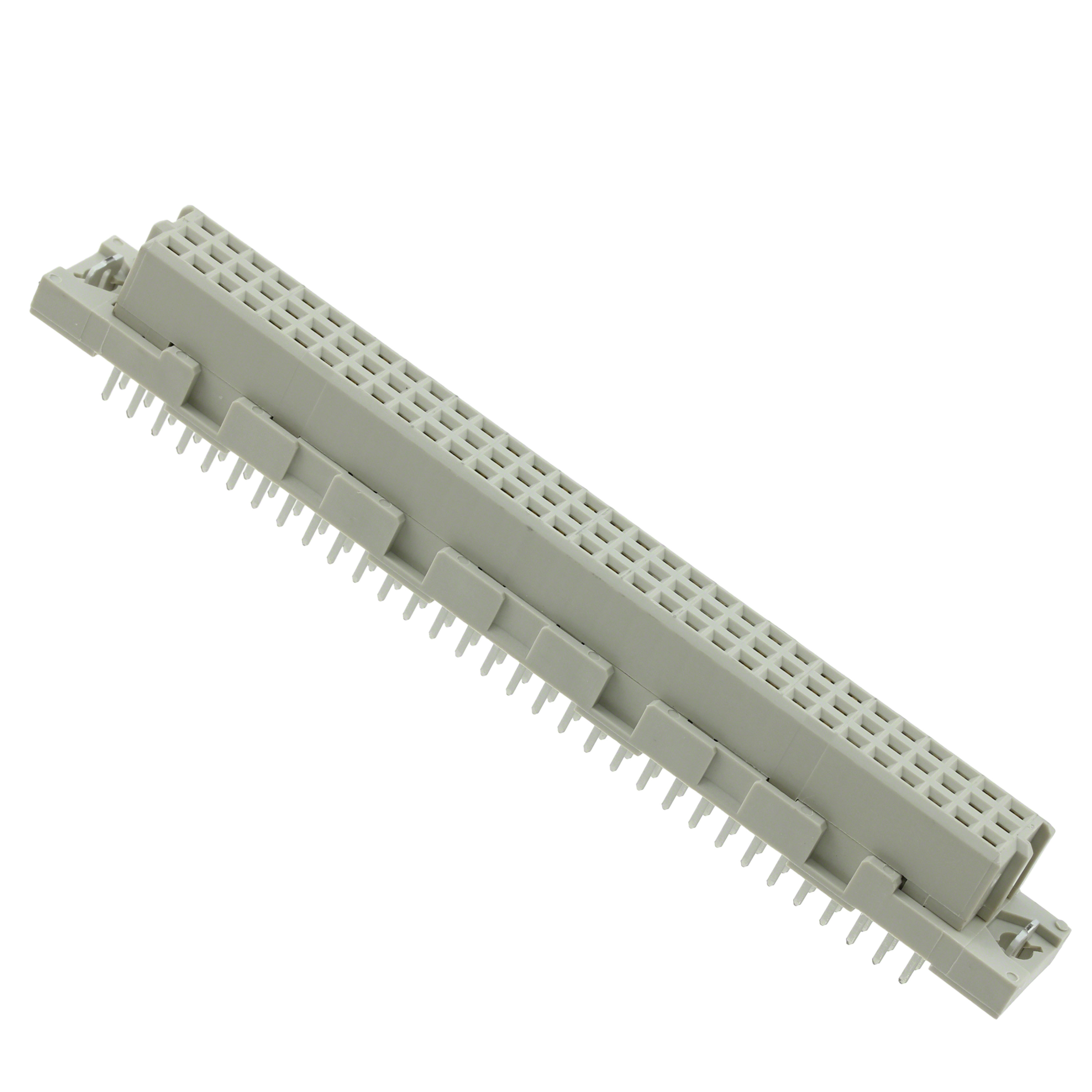

TE Connectivity AMP Connectors 2-1393641-7	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	C	0.1 "	2.54 mm			Through Hole	3		Solder	Receptacle Female Sockets		Gold Gold-Palladium	All	96	Board Lock
TE Connectivity AMP Connectors 3-1393641-5	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	C	0.1 "	2.54 mm			Through Hole	3	64	Solder	Receptacle Female Sockets		Gold Gold-Palladium		96
