1971776 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PLUG HSG 10POS 6.00MM

Part	Color	Mounting Type	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Note	Contact Type	Number of Positions	Contact Termination	Row Spacing	Row Spacing	Insulation Material
TE Connectivity Raychem Cable Protection 5-1971776-5	Gray	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	10	Crimp	8.1 mm	0.319 in	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 7-1971776-3	Black	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Nylon Polyamide (PA)

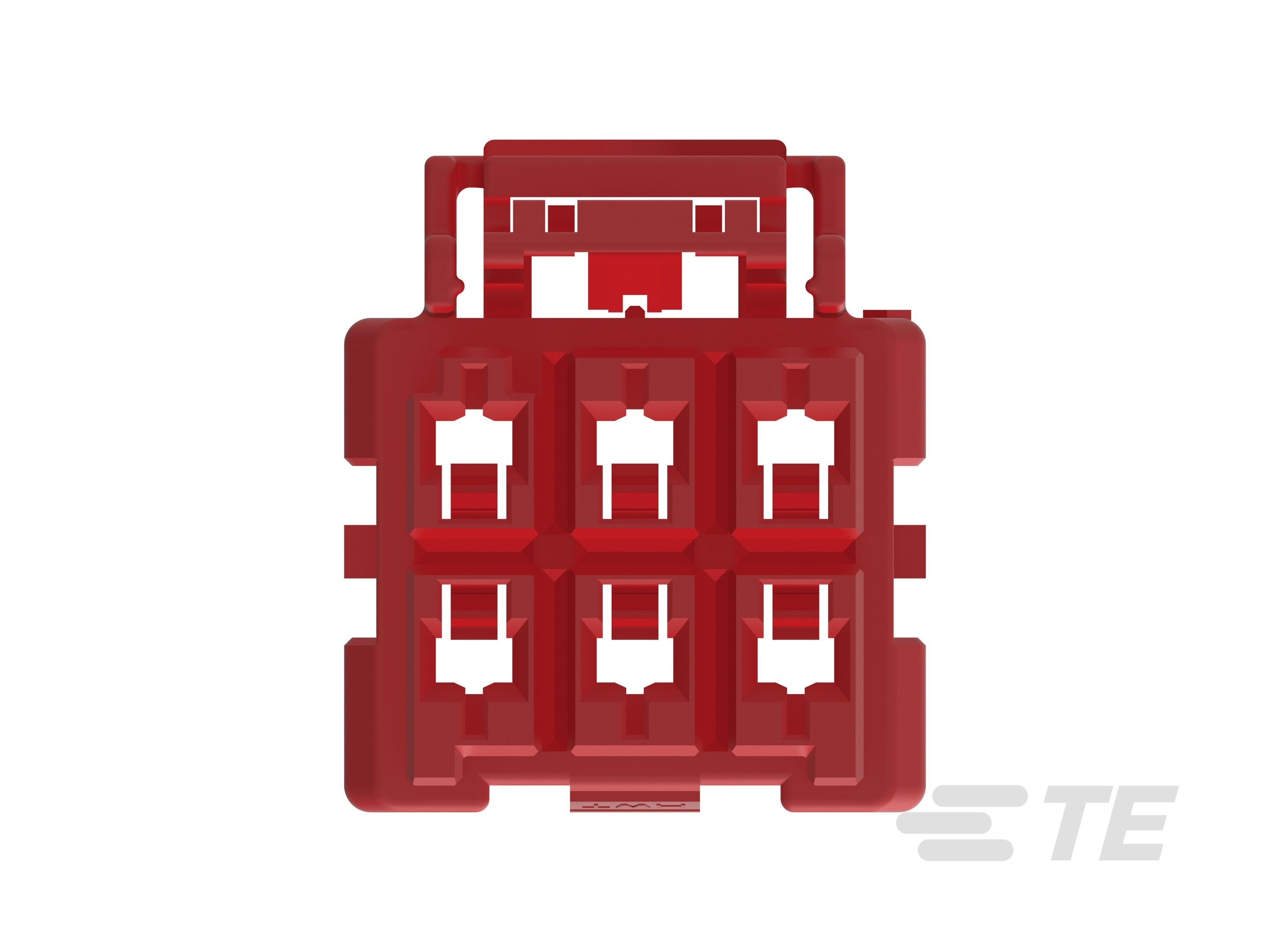

TE Connectivity Raychem Cable Protection 6-1971776-3	Red	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Nylon Polyamide (PA)

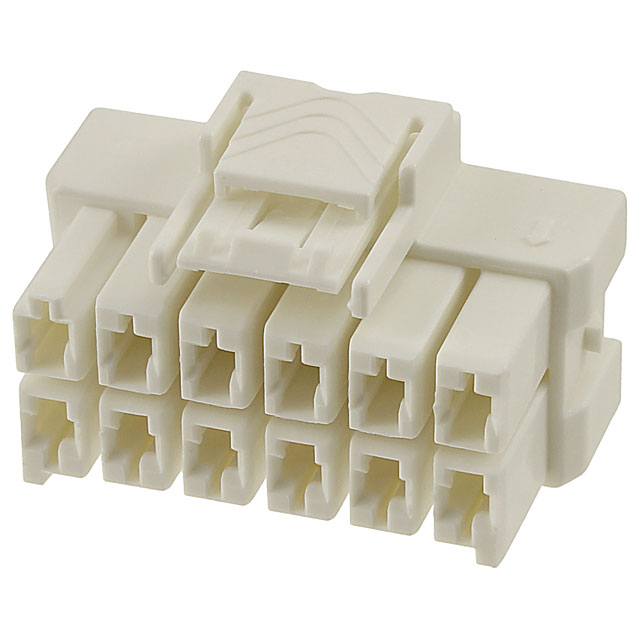

TE Connectivity Raychem Cable Protection 1-1971776-6	Natural	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	12	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 4-1971776-3	Yellow	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled

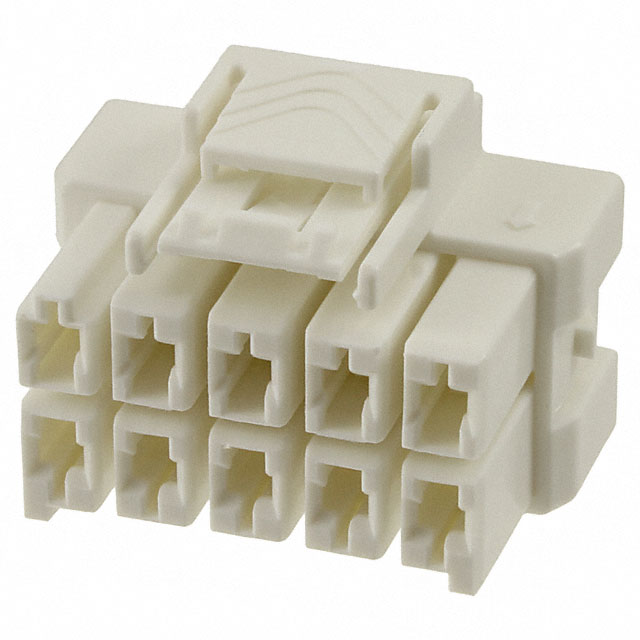

TE Connectivity Raychem Cable Protection 1-1971776-5	Natural	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	10	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 2-1971776-3	Purple	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled

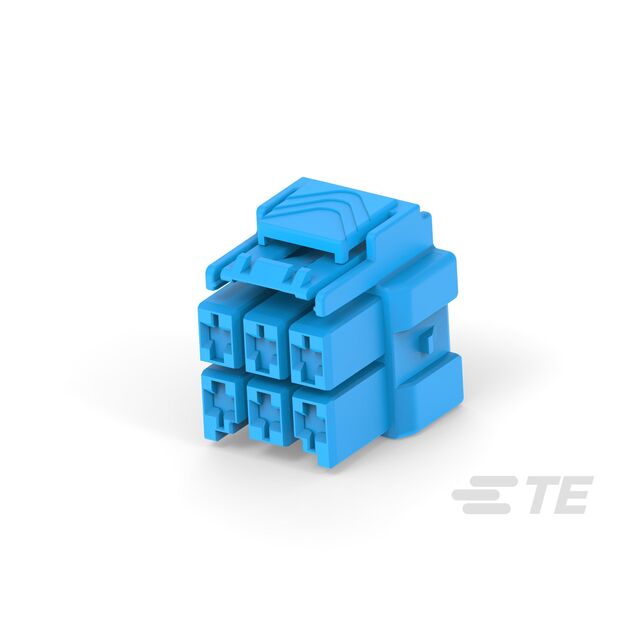

TE Connectivity Raychem Cable Protection 3-1971776-3	Blue	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 8-1971776-3	Natural	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	6	Crimp	8.1 mm	0.319 in	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 4-1971776-5	Yellow	Free Hanging (In-Line)	2	Latch Holder	-55 °C	150 °C	0.236 in	6 mm	Plug	Contacts Not Included	Female Blade Socket	10	Crimp	8.1 mm	0.319 in	Polybutylene Terephthalate (PBT) Glass Filled
