SFR8R Series

Catalog

CONN FFC BOTTOM 8POS 0.8MM R/A

Part	Housing Color	Actuator Color	Cable End Type	Material Flammability Rating	Number of Positions	Flat Flex Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Locking Feature	Connector/Contact Type	Housing Material	Termination	Pitch	Pitch	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Contact Finish	Actuator Material	Contact Material
Amphenol ICC (FCI) SFR8R-1STE1	Black	Black	Straight or Tapered	UL94 V-0	8	FFC FPC	Right Angle Surface Mount	0.098 in	2.5 mm	Slide Lock	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Solder	0.8 mm	0.031 in	0.3 mm	0.33 mm	Tin Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze

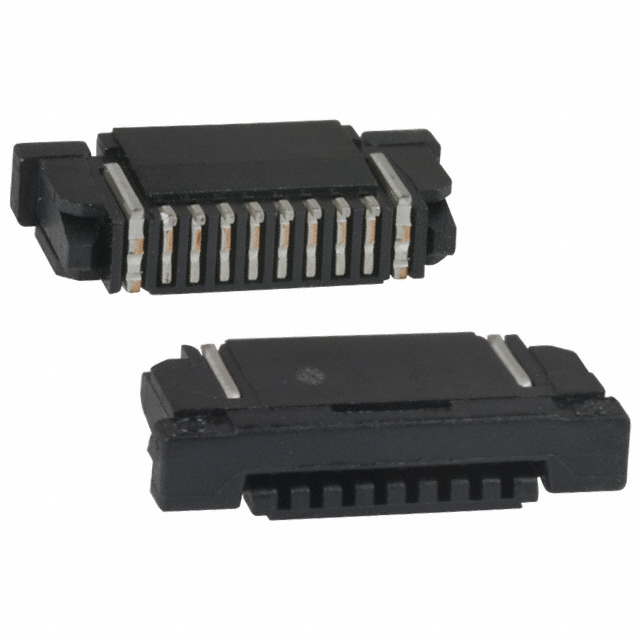

Amphenol ICC (FCI) SFR8R-1STE1LF	Black	Black	Straight or Tapered	UL94 V-0	8	FFC FPC	Right Angle Surface Mount	0.098 in	2.5 mm	Slide Lock	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Solder	0.8 mm	0.031 in	0.3 mm	0.33 mm	Tin	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze
