OSTTJ14 Series

Catalog

TERM BLOCK PLUG 14POS STR 5.08MM

Part	Termination Style	Mounting Type	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Positions Per Level	Housing Material	Torque - Screw	Torque - Screw	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - IEC	Color	Number of Levels	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTJ145153	Screw	Free Hanging (In-Line)	300 V	24 AWG	12 AWG	Tin	0.34 mm²	2.5 mm²	14	Brass	0.56 Nm	5 Lb-In	Brass	-30 ░C	105 ░C	14	Plug Female Sockets	0.2 in	5.08 mm	UL94 V-0	7 mm	8 mm	300 V	Green	1
On Shore Technology Inc. OSTTJ145152	Screw	Free Hanging (In-Line)	300 V	24 AWG	12 AWG		0.34 mm²	2.5 mm²	14	Brass	0.56 Nm	5 Lb-In	Brass	-30 ░C	105 ░C	14	Plug Female Sockets	0.2 in	5.08 mm	UL94 V-0	7 mm	8 mm		Green	1
On Shore Technology Inc. OSTTJ140152	Screw	Free Hanging (In-Line)	300 V	24 AWG	12 AWG				14	Brass	0.56 Nm	5 Lb-In	Brass	-30 ░C	105 ░C	14	Plug Female Sockets	0.3 in	7.62 mm	UL94 V-0	7 mm	8 mm			1
On Shore Technology Inc. OSTTJ1431530	Screw	Free Hanging (In-Line)	300 V	26 AWG	16 AWG				14	Brass	0.28 Nm	2.5 Lb-In	Brass	-40 °C	115 °C	14	Plug Female Sockets	0.15 in	3.81 mm		6 mm	7 mm		Green	1	1.5 mm²
On Shore Technology Inc. OSTTJ140150	Screw	Free Hanging (In-Line)	300 V	24 AWG	12 AWG				14	Brass	0.56 Nm	5 Lb-In	Brass	-30 ░C	105 ░C	14	Plug Female Sockets	0.3 in	7.62 mm	UL94 V-0	7 mm	8 mm			1

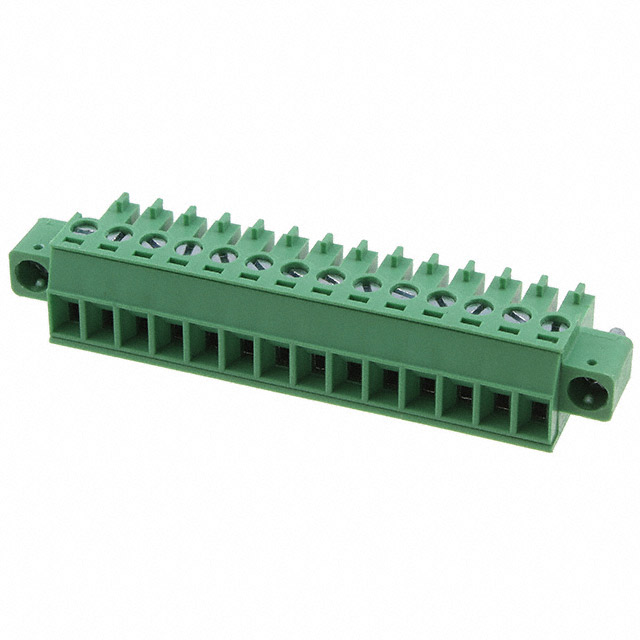

On Shore Technology Inc. OSTTJ1431520	Screw	Free Hanging (In-Line)	300 V	26 AWG	16 AWG				14	Brass	0.28 Nm	2.5 Lb-In	Brass	-30 ░C	105 ░C	14	Plug Female Sockets	0.15 in	3.81 mm	UL94 V-0	6 mm	7 mm		Green	1	1.5 mm²
