892-104 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 104POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Gender	Number of Positions/Bay/Row	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Color	Termination	Number of Positions	Mounting Type	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-104-540-201	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Wire Wrap	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever
EDAC Inc. 892-104-544-208	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Wire Wrap	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-104-555-201	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Board Edge Straddle Mount	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever		Card Extender
EDAC Inc. 892-104-523-203	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	Floating Bobbin Flush Mount		0.116 "	2.95 mm

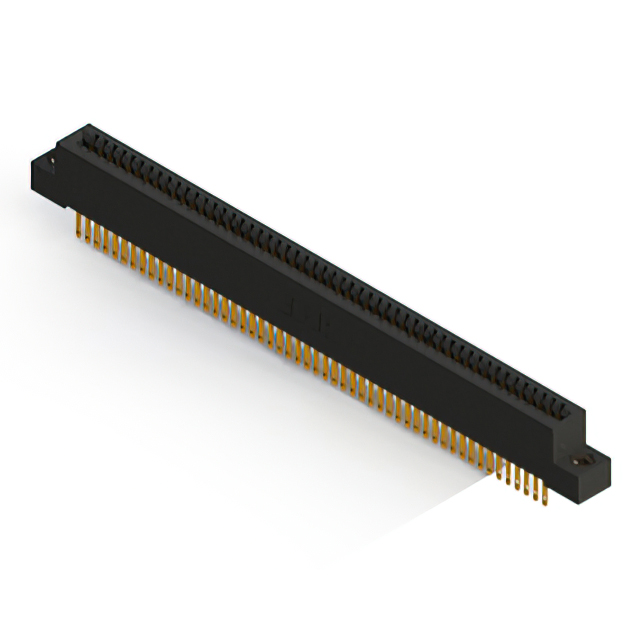

EDAC Inc. 892-104-500-208	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder Eyelet(s)	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-104-559-203	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Right Angle Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	Floating Bobbin Flush Mount		0.116 "	2.95 mm

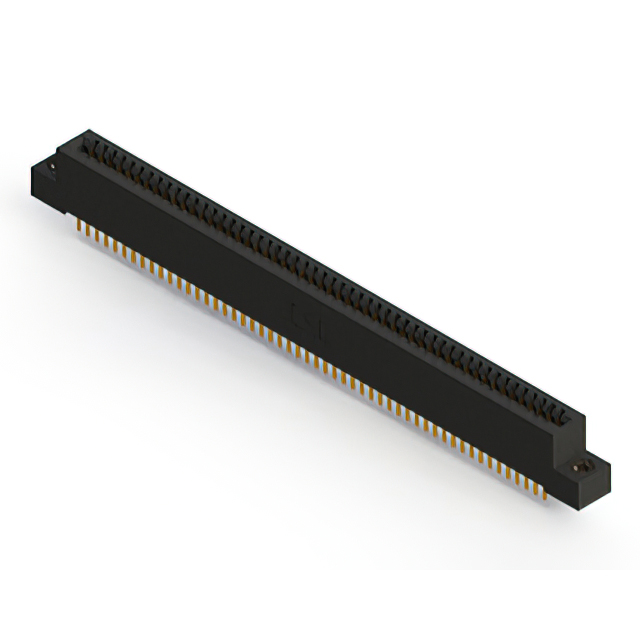

EDAC Inc. 892-104-521-208	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-104-542-212	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Wire Wrap	104	Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	Flush Mount Side Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 892-104-555-208	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Board Edge Straddle Mount	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Card Extender
EDAC Inc. 892-104-558-212	2	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	52	Dual	125 °C	-40 C	0.1 "	2.54 mm	Black	Solder	104	Right Angle Through Hole	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Cantilever	Flush Mount Side Opening Unthreaded		0.128 "	3.25 mm
