Rkc20 Series Series

3.5 x 2.7mm Microminiature SMT Top Actuated Tact

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

3.5 x 2.7mm Microminiature SMT Top Actuated Tact

Part	Actuator Height off PCB, Vertical	Termination Style	Actuator Orientation	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Force	Circuit	Switch Travel	Actuator Type	Switch Function	Illumination	Mechanical Life

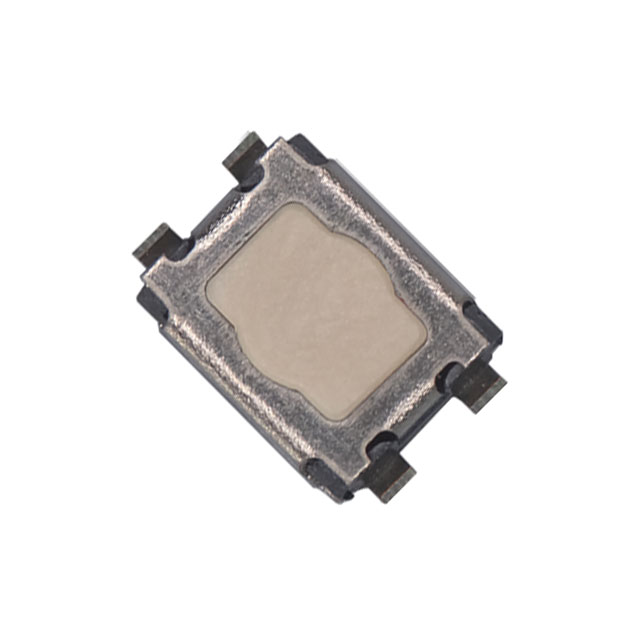

Littelfuse/Commercial Vehicle Products RKC2SJF170SMTR LFS	1.7 mm	J Lead	Top Actuated	0.02 A 12 VDC	85 °C	-40 °C	Surface Mount	0.5 kgf	SPST-NO	0.15 mm	Rectangular Button	Off-Mom	Non-Illuminated	100000 Cycles

Catalog

3.5 x 2.7mm Microminiature SMT Top Actuated Tact

Key Features

• 1.7 mm height, 3.5 x 2.7 mm size

• SMT termination

• Hard actuator

• 180, 250, 350 & 500 gf actuation forces

• 100k to 200k cycles

Description

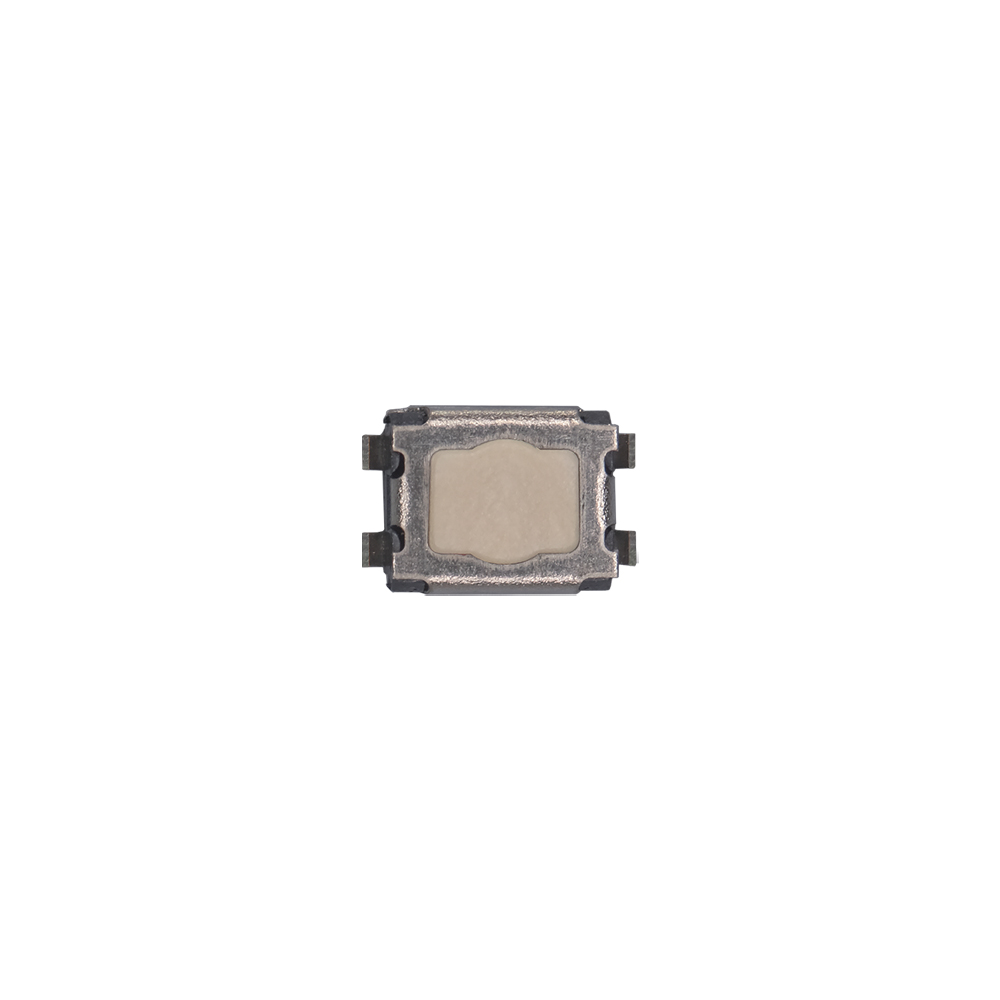

RKC2 series is microminiature SMT top actuated tactile switch with different choices of actuation force and up to 200k lifecycles. The switch is ideal for applications that need a high density of components in limited PCB space, such as automotive, high-end consumer and health & medical devices.
