1634504 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

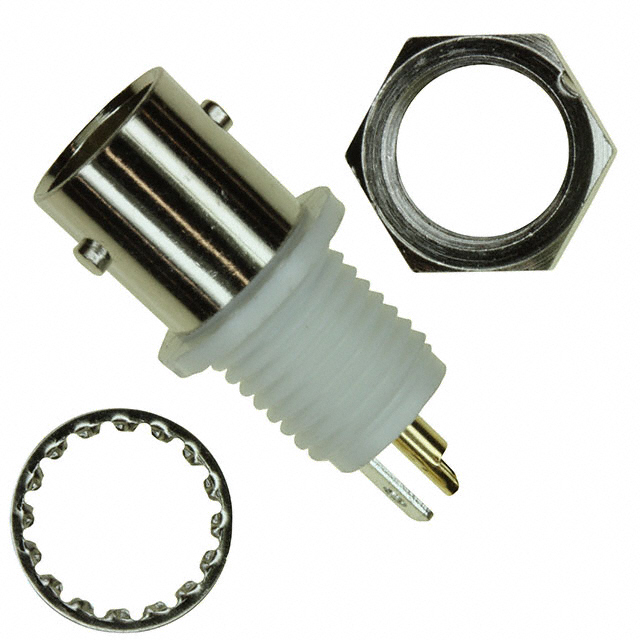

CONN BNC JACK STR 50 OHM SOLDER
| Part | Dielectric Material | Mating Cycles | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Center Contact Plating | Body Material | Fastening Type | Frequency - Max [Max] | Features | Connector Type | Number of Ports | Impedance | Housing Color | Mounting Feature | Mounting Type | Shield Termination | Connector Style | Contact Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | 500 | 500 V | -55 C | 85 °C | Nickel | 1 Connector 1 Lockwasher 1 Nut | Gold | Zinc Alloy | Bayonet Lock | 4 GHz | Isolated | Female Socket Jack | 1 | 50 Ohms | Silver White | Bulkhead - Rear Side Nut | Panel Mount | Solder | BNC | Solder Cup | Phosphor Bronze |
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | 500 | 500 V | -55 C | 85 °C | Nickel | 1 Connector 1 Lockwasher 1 Nut | Gold | Zinc Alloy | Bayonet Lock | 2 GHz | Isolated | Female Socket Jack | 1 | 75 Ohms | Silver White | Bulkhead - Rear Side Nut | Panel Mount | Solder | BNC | Solder Cup | Phosphor Bronze |
