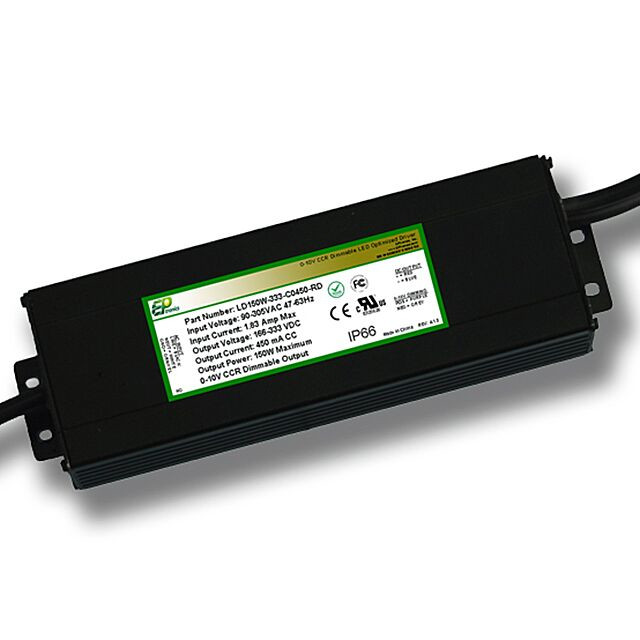

LD150W Series
Manufacturer: EPtronics, Inc.
Beta
⌘K
LED DRIVER AC/DC CC 16-48V 3.15A
| Part | Mounting Type | Type | Number of Outputs | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Voltage - Input (Min) [Min] | Ratings | Power (Watts) | Dimming | Topology | Current - Output (Max) [Max] | Features | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPtronics, Inc. | Chassis Mount | Constant Current | 1 | 89 % | -30 ░C | 60 °C | CE cUL cURus FCC | Wire Leads | 90 VAC | IP66 | 150 W | Analog PWM | AC DC Converter | 3.15 A | OCP OVP SCP | 48 V | 16 V | 305 VAC | 7.2 " | 1.47 in | 2.33 " | 182.9 mm | 59.2 mm | 37.3 mm | 3750 VDC |
