PPTC352 Series

Catalog

CONN HDR 70POS 0.1 TIN PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Number of Rows [custom]	Fastening Type	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Type	Current Rating (Amps)	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

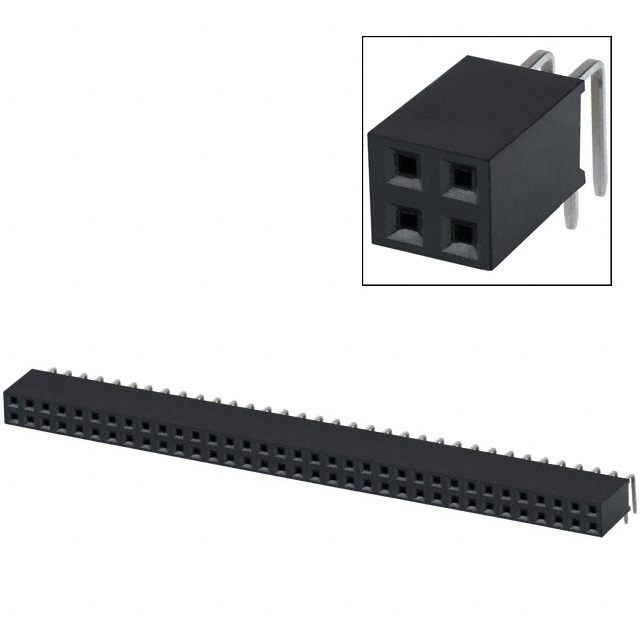

Sullins Connector Solutions PPTC352LJBN	Square	Polyester	Phosphor Bronze	2	Push-Pull	Right Angle Through Hole	0.124 in	3.15 mm	70	All	0.1 in	2.54 mm	Tin	Female Socket	3 A	UL94 V-0	0.2 in	5.08 mm	Black	0.1 "	2.54 mm	250 V	Header	Solder	-40 C	105 ░C

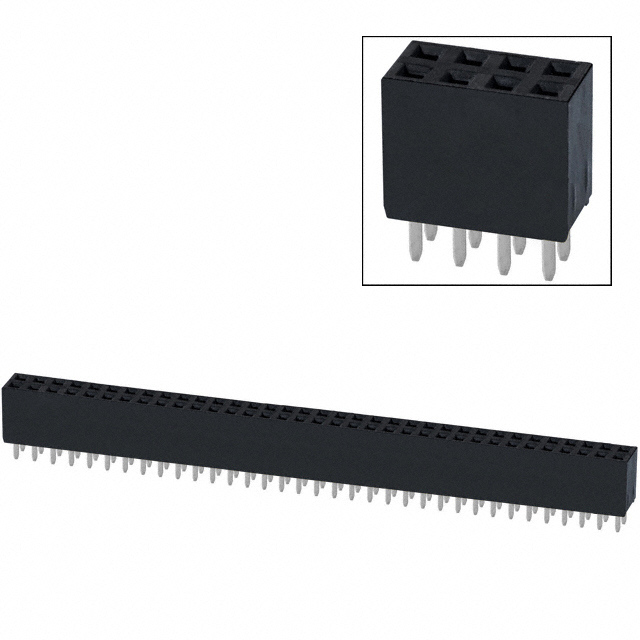

Sullins Connector Solutions PPTC352LFBN-RC	Square	Polyester	Phosphor Bronze	2	Push-Pull	Through Hole			70	All	0.1 in	2.54 mm	Tin	Female Socket	3 A	UL94 V-0			Black	0.1 "	2.54 mm	250 V	Header	Solder	-40 C	105 ░C	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC352LFBN	Square	Polyester	Phosphor Bronze	2	Push-Pull	Through Hole			70	All	0.1 in	2.54 mm	Tin	Female Socket	3 A	UL94 V-0			Black	0.1 "	2.54 mm	250 V	Header	Solder	-40 C	105 ░C	0.126 "	3.2 mm	0.335 "	8.51 mm
