G1103/4 Series

Catalog

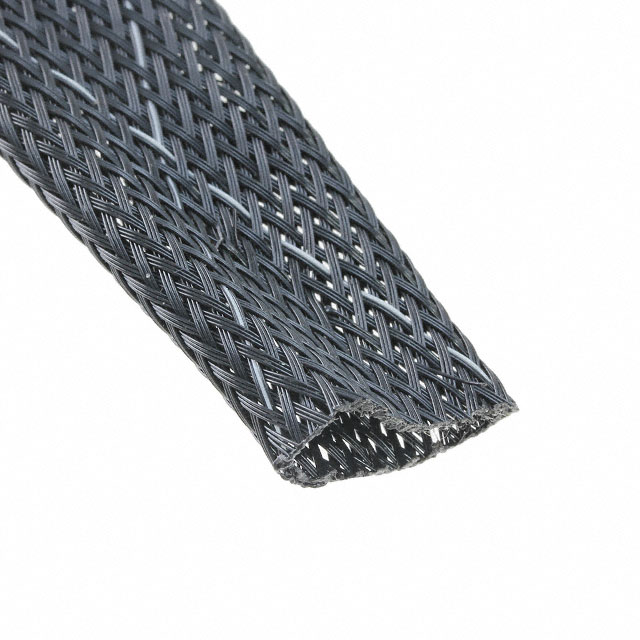

SLEEVING, EXPANDABLE, PET (POLYETHYLENE TEREPHTHALATE), BLACK, 31.75 MM, 30.5 M, 100 FT

Part	Material	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Type	Features	Environment Protection	Wall Thickness	Wall Thickness	Color	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Length [x]	Length [x]
ALPHA WIRE G1103/4 BK005	Polyester Halogen Free	0.5 in	12.7 mm	Expandable	Sleeve	Fungus Resistant	Corrosion Resistant	0.64 mm	0.025 in	Black	100 '	30.48 m	125 °C	-75 °C	31.75 mm	1.25 in	Abrasion and Cut Resistant
ALPHA WIRE G1103/4 GY005	Polyester Halogen Free	0.5 in	12.7 mm	Expandable	Sleeve	Fungus Resistant	Corrosion Resistant	0.64 mm	0.025 in	Green Yellow	100 '	30.48 m	125 °C	-75 °C	31.75 mm	1.25 in	Abrasion and Cut Resistant
ALPHA WIRE G1103/4 BK002	Polyester Halogen Free	0.5 in	12.7 mm	Expandable	Sleeve	Fungus Resistant	Corrosion Resistant	0.64 mm	0.025 in	Black			125 °C	-75 °C	31.75 mm	1.25 in	Abrasion and Cut Resistant	152.4 m	500 ft
