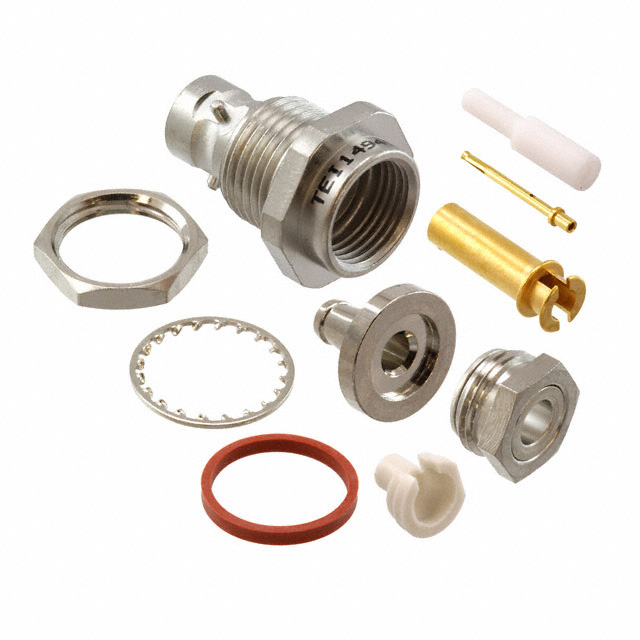

BJ159 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K
CONN TRS JACK STR SOLDER
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Includes | Body Material | Voltage Rating | Shield Termination | Features | Cable Group | Mounting Feature | Frequency - Max [Max] | Fastening Type | Housing Color | Connector Type | Contact Termination | Connector Style | Mounting Type | Impedance | Number of Ports | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | Nickel | -65 ░C | 200 °C | 500 | Gold | 1 Connector 1 Lockwasher 1 Nut | Brass | 400 V | Wrench Clamp | Three Lug | M17/176-00002 | Bulkhead - Front Side Nut | 500 MHz | Bayonet Lock | Silver | Jack Female Socket (Concentric) | Solder | TRS Twinaxial/Triaxial | Panel Mount | Non-Constant | 1 | Beryllium Copper |
 Cinch Connectivity Solutions Trompeter | Nickel | -65 ░C | 200 °C | 500 | Gold | 1 Connector 1 Heat Shrink 1 Nut 1 Washer | Brass | 400 V | Crimp | Three Lug | TRC-75-2 | Bulkhead - Front Side Nut | 500 MHz | Bayonet Lock | Silver | Jack Female Socket (Concentric) | Crimp | TRS Twinaxial/Triaxial | Panel Mount | Non-Constant | 1 | Beryllium Copper |
Cinch Connectivity Solutions Trompeter | Nickel | -65 ░C | 200 °C | 500 | Gold | 1 Nut 1 Washer 3 pcs - 1 Connector | Brass | 400 V | Wrench Clamp | Four Lug | M17/176-00002 | Bulkhead - Front Side Nut | 500 MHz | Bayonet Lock | Silver | Jack Female Socket (Concentric) | Solder | TRS Twinaxial/Triaxial | Panel Mount | Non-Constant | 1 | Beryllium Copper |
