MMBZ5228 Series

Catalog

SURFACE MOUNT SILICON ZENER DIOD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Impedance (Max) (Zzt) [Max]	Supplier Device Package	Grade	Voltage - Zener (Nom) (Vz)	Tolerance	Mounting Type	Package / Case	Power - Max [Max]	Qualification	Configuration

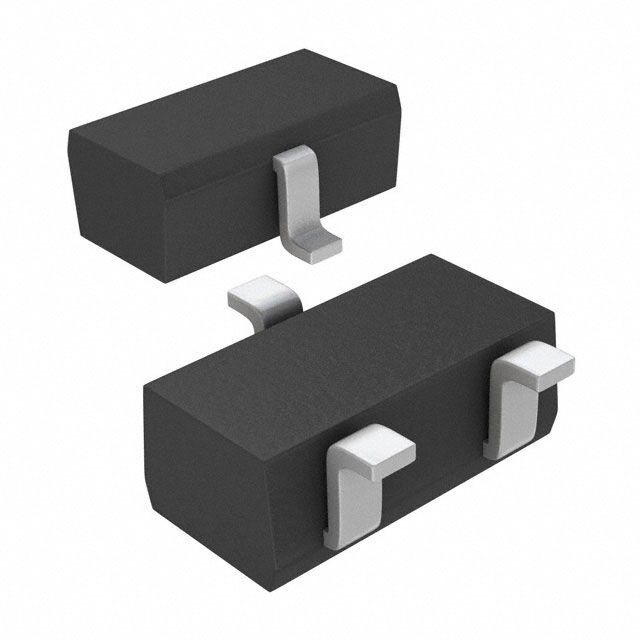

Panjit International Inc. MMBZ5228B-AU_R1_000A1	150 °C	-55 °C	10 µA	23 Ohms	SOT-23	Automotive	3.9 V	5 %	Surface Mount	SC-59 SOT-23-3 TO-236-3	410 mW	AEC-Q101

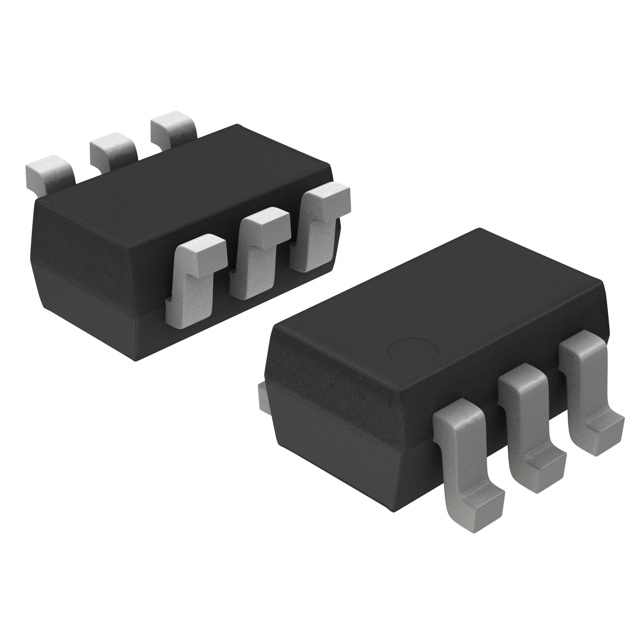

Panjit International Inc. MMBZ5228BTW_R1_00001	150 °C	-55 °C	10 µA	23 Ohms	SOT-363		3.9 V	5 %	Surface Mount	6-TSSOP SC-88 SOT-363	200 mW		3 Independent
Panjit International Inc. MMBZ5228B_R1_00001	150 °C	-55 °C	10 µA	23 Ohms	SOT-23		3.9 V	5 %	Surface Mount	SC-59 SOT-23-3 TO-236-3	410 mW
Panjit International Inc. MMBZ5228BV_R1_00001	150 °C	-55 °C	10 µA	23 Ohms	SOD-523		3.9 V	5 %	Surface Mount	SC-79 SOD-523	200 mW
Panjit International Inc. MMBZ5228BW_R1_00001	150 °C	-55 °C	10 µA	23 Ohms	SOT-323		3.9 V	5 %	Surface Mount	SC-70 SOT-323	200 mW
