5481C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

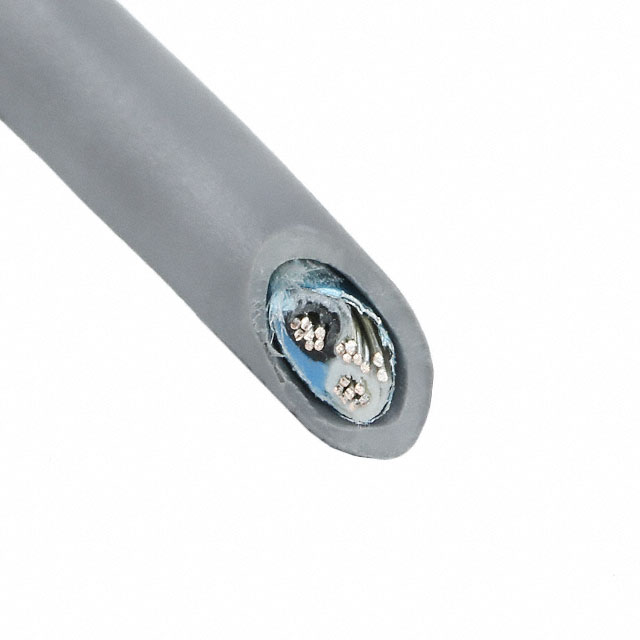

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 1 PAIR, 22 AWG, 0.35 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Conductor Insulation | Wire Gauge | Length | Length | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Usage | Voltage | Cable Type | Jacket (Insulation) Material | Number of Conductors | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 22 AWG | 152.4 m | 500 ft | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Foil | Communication Control | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 2 | |||
ALPHA WIRE | 100 % | Aluminum | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | 22 AWG | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Foil | Communication Control | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 2 | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity | ||
 ALPHA WIRE | 100 % | Aluminum | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Black | Poly-Vinyl Chloride (PVC) | 22 AWG | 304.8 m | 1000 ft | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Foil | Communication Control | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 2 |
