1825027 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

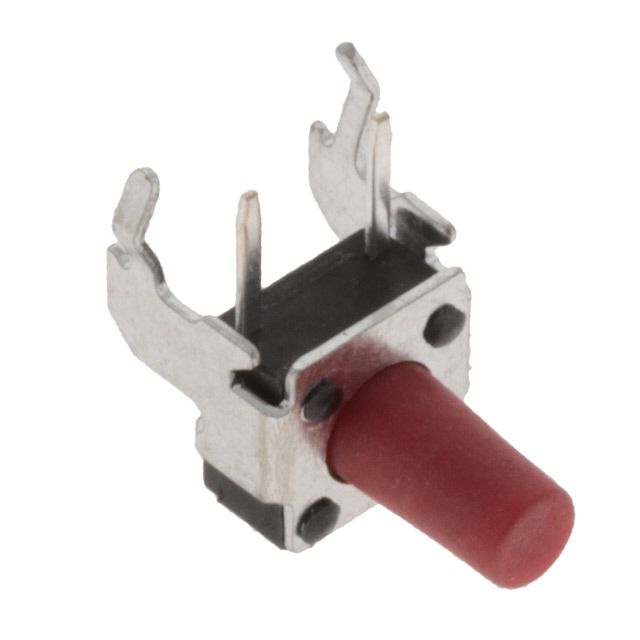

SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Contact Rating @ Voltage | Circuit | Actuator Length, Right Angle [x] | Termination Style | Operating Force | Switch Function | Illumination | Switch Travel | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Material | Actuator Type | Actuator Orientation | Actuator Length, Right Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.05 A 24 VDC | SPST-NO | 15.85 mm | PC Pin | 260 gf | Off-Mom | Non-Illuminated | 0.25 mm | 100000 Cycles | -20 C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | Standard | Side Actuated | |
 TE Connectivity Raychem Cable Protection | 0.05 A 24 VDC | SPST-NO | PC Pin | 260 gf | Off-Mom | Non-Illuminated | 0.25 mm | 100000 Cycles | -20 C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | Standard | Side Actuated | 8.35 mm | |
 TE Connectivity Raychem Cable Protection | 0.05 A 24 VDC | SPST-NO | 3.86 mm | PC Pin | Off-Mom | Non-Illuminated | 0.25 mm | 100000 Cycles | -20 C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | Standard | Side Actuated |
