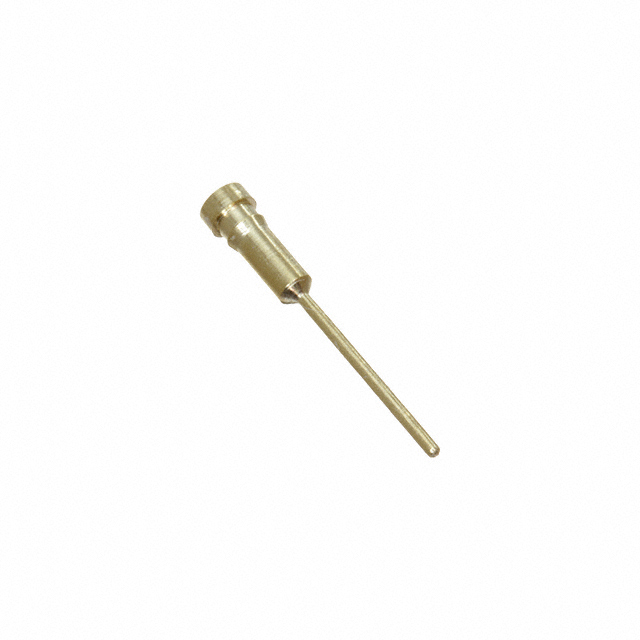

0145-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Socket Depth [z]	Socket Depth [z]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0145-0-15-80-30-14-04-0	-55 C	125 °C	Standard Tail	12.45 mm	0.49 "	3.81 mm	0.15 in	Beryllium Copper	0.072 "	1.83 mm	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	0.059 in	1.5 mm	Gold	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0145-0-15-01-30-02-04-0	-55 C	125 °C	Standard Tail	12.45 mm	0.49 "	3.81 mm	0.15 in	Beryllium Copper	0.072 "	1.83 mm	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	0.059 in	1.5 mm	Tin-Lead	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0145-0-15-01-30-14-04-0	-55 C	125 °C	Standard Tail	12.45 mm	0.49 "	3.81 mm	0.15 in	Beryllium Copper	0.072 "	1.83 mm	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	0.059 in	1.5 mm	Gold	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0145-0-15-01-30-27-04-0	-55 C	125 °C	Standard Tail	12.45 mm	0.49 "	3.81 mm	0.15 in	Beryllium Copper	0.072 "	1.83 mm	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	0.059 in	1.5 mm	Gold	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0145-0-15-15-30-27-04-0	-55 C	125 °C	Standard Tail	12.45 mm	0.49 "	3.81 mm	0.15 in	Beryllium Copper	0.072 "	1.83 mm	Press-Fit	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	0.059 in	1.5 mm	Gold	0.51 mm	0.02 in
