505147 Series
Manufacturer: Molex
Beta
⌘K

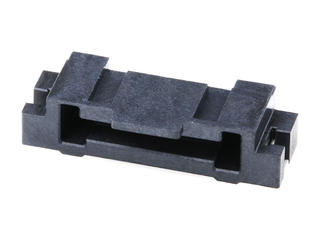

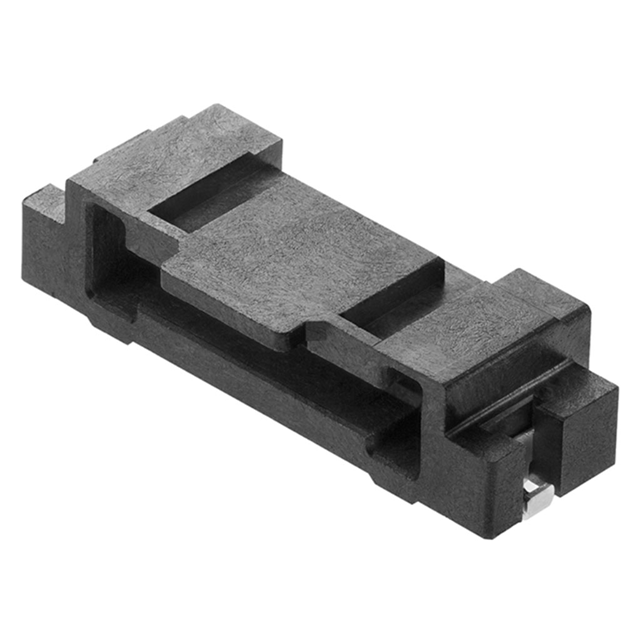

2.00MM PITCH EASY-ON FLEXI-LATCH FPC-TO-BOARD CONNECTOR, RIGHT-ANGLE, SURFACE MOUNT, POSITIVE INERTIA LOCK, 3 CIRCUITS
| Part | Current Rating (Amps) | Housing Color | Mating Cycles | Contact Finish | Connector/Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Mounting Type | Termination | Cable End Type | Features | Housing Material | Contact Material | Pitch [x] | Pitch [x] | Material Flammability Rating | Flat Flex Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1.5 A | Black | 25 | Gold | Contacts Bottom | 125 °C | -40 C | 0.3 mm | 50 V | 4.85 mm | 0.191 " | Right Angle Surface Mount | Solder | Tapered | Solder Retention | Glass Filled Liquid Crystal Polymer (LCP) | Copper Alloy | 0.079 in | 2 mm | UL94 V-0 | FPC | |
 Molex | 1.5 A | Black | 25 | Gold | Contacts Bottom | 125 °C | -40 C | 0.3 mm | 50 V | 4.85 mm | 0.191 " | Right Angle Surface Mount | Solder | Tapered | Solder Retention | Glass Filled Liquid Crystal Polymer (LCP) | Copper Alloy | 0.079 in | 2 mm | UL94 V-0 | FPC | 4 |
