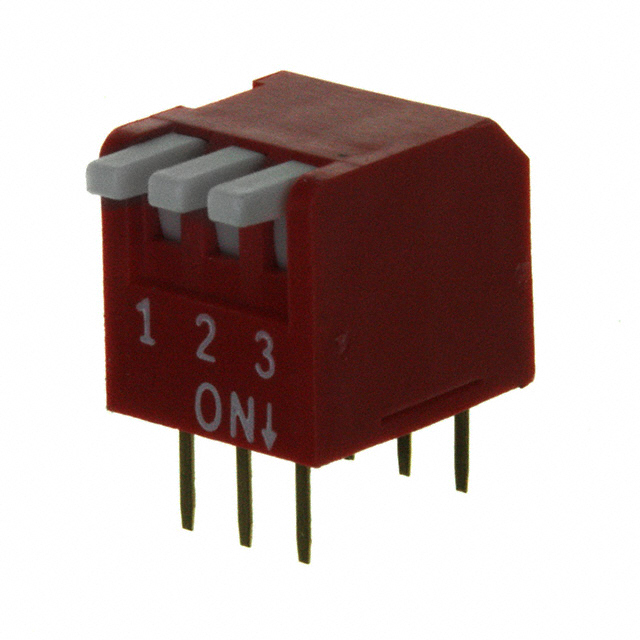

KAP1103 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Electrical Life | Length | Length | Mechanical Life | Body Material | Current Rating (Amps) | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch | Pitch | Circuit | Height Above Board | Height Above Board | Termination Style | Actuator Level | Contact Finish | Voltage Rating | Washable | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Steps | 9.17 mm | 0.361 in | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | 25 mA | Piano | Right Angle Through Hole | 85 °C | -40 C | Phosphor Bronze | 2.54 mm | 0.1 " | SPST | 10.2 mm | 0.402 in | PC Pin | Flush Recessed | Gold | 24 VDC | Tape Seal |
