PJT-24 Series
Manufacturer: Delta Electronics
Beta
⌘K

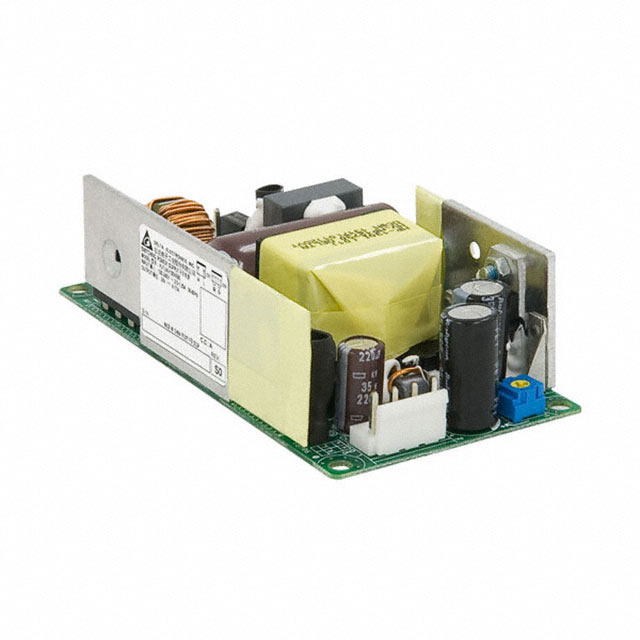

AC/DC POWER SUPPLY SINGLE-OUT 24V 4.17A 100W 10-PIN CARTON
| Part | Applications | Number of Outputs | Power (Watts) | Mounting Type | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Voltage - Output 1 | Type | Current - Output 1 | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | ITE (Commercial) | 1 | 100 W | Chassis Mount | 88 % | 264 VAC | 90 VAC | CB CE cURus TUV | 24 V | Open Frame | 4.17 A | 3000 V | 70 °C | -10 °C | Universal Input | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm |
 Delta Electronics | ITE (Commercial) | 1 | 80 W 100 W | Chassis Mount | 89 % | 264 VAC | 90 VAC | CB CE cURus TUV | 24 V | Open Frame | 3.33 A | 3000 V | 70 °C | -10 °C | Adjustable Output Universal Input | 4 " | 50.8 mm | 31.8 mm | 1.25 in | 2 in | 101.6 mm |
