3258J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

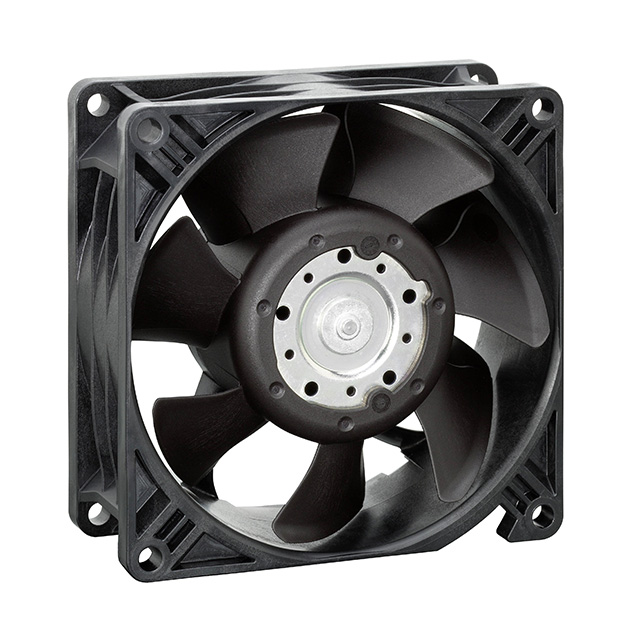

FAN AXIAL 92X38MM 48VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Weight | Weight | Power (Watts) | Width [y] | Bearing Type | Voltage - Rated | Noise | Air Flow | Air Flow | RPM | Features | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Termination | Lifetime @ Temp. | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | 36 VDC | 56 VDC | 239.95 g | 0.529 lb | 24 W | 38 mm | Ball | 48 VDC | 59 dB(A) | 3.86 m³/min | 138 CFM | 6650 RPM | Speed Sensor (Tach) | -20 ░C | 70 °C | Tubeaxial | CSA UL VDE | 92 mm | 92 mm | 3 Wire Leads | |||
ebm-papst Inc. | Polyamide (PA) Nylon | 36 VDC | 56 VDC | 239.95 g | 0.529 lb | 33.6 W | 38 mm | Ball | 48 VDC | 64 dB(A) | 4.42 m³/min | 158 CFM | 7450 RPM | PWM Control Speed Sensor (Tach) | -20 ░C | 70 °C | Tubeaxial | CSA UL VDE | 92 mm | 92 mm | 4 Wire Leads | 85000 Hrs | 0.7 A | |
ebm-papst Inc. | Polyamide (PA) Nylon | 36 VDC | 56 VDC | 239.95 g | 0.529 lb | 24 W | 38 mm | Ball | 48 VDC | 59 dB(A) | 3.86 m³/min | 138 CFM | 6650 RPM | Speed Sensor (Tach) | -20 ░C | 70 °C | Tubeaxial | UL | 92 mm | 92 mm | 3 Wire Leads | IP68 - Dust Tight Waterproof | ||
 ebm-papst Inc. | Polyamide (PA) Nylon | 36 VDC | 56 VDC | 239.95 g | 0.529 lb | 33.6 W | 38 mm | Ball | 48 VDC | 64 dB(A) | 4.42 m³/min | 158 CFM | 7450 RPM | PWM Control Speed Sensor (Tach) | -20 ░C | 70 °C | Tubeaxial | UL | 92 mm | 92 mm | 4 Wire Leads | 85000 Hrs | 0.7 A | IP68 - Dust Tight Waterproof |
