2323751 Series

Catalog

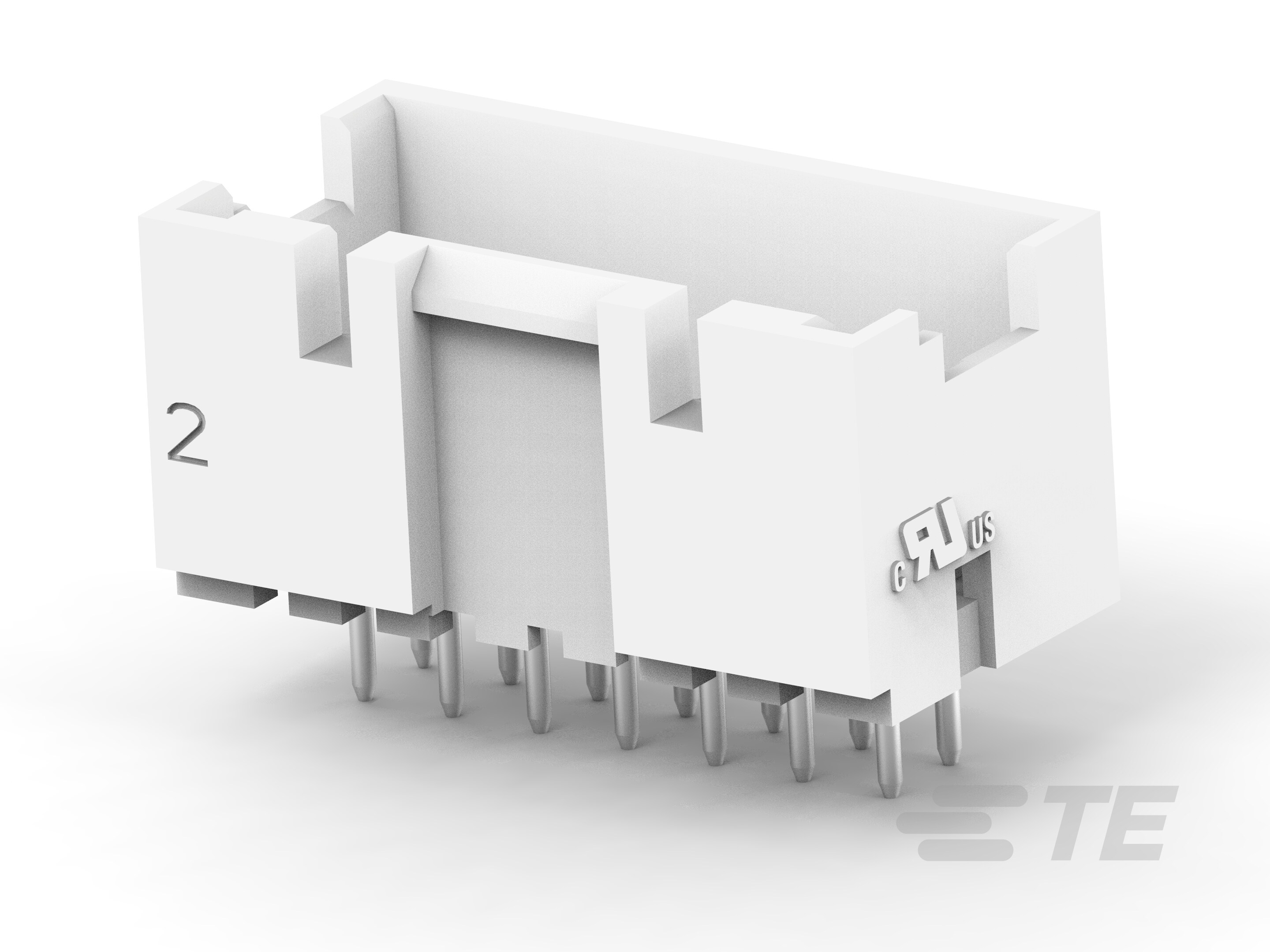

ASSY,HDR,VERT,GWT,NO-BOSS,DUAL ROW,EP2.5

Part	Insulation Height	Insulation Height	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Material	Contact Shape	Shrouding	Material Flammability Rating	Voltage Rating	Insulation Color	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Fastening Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded
TE Connectivity Raychem Cable Protection 1-2323751-4	9.8 mm	0.386 in	Male Pin	2.5 mm	0.098 in	105 ░C	-55 °C	Tin	Copper Alloy	Circular	Shrouded - 4 Wall	UL94 V-0	250 VAC	Natural	Kinked Pin Solder	14	78.7 µin	2 µm	Board to Cable/Wire	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	Through Hole	2 çm	78.7 çin	2	Friction Lock	Header	0.098 in	2.5 mm	All
