LOD-H02002 Series

Catalog

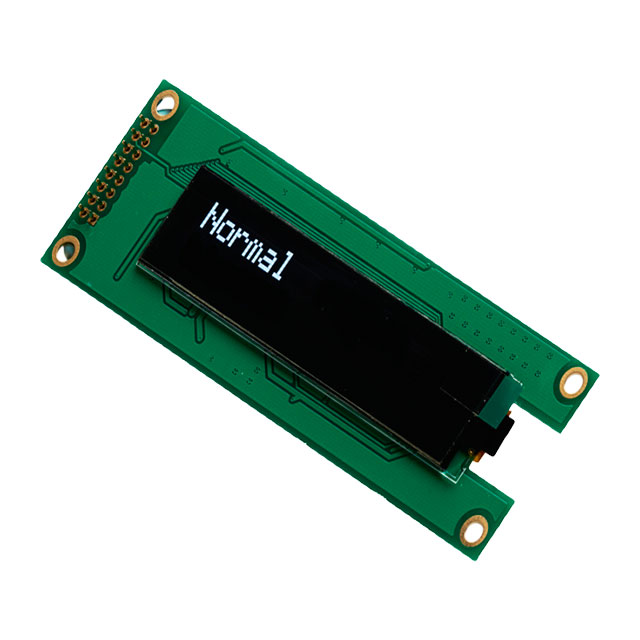

OLED MODULE 40DIG 20 X 2 PASSIVE

Part	Display Mode	Dot Size [custom]	Dot Size [custom]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters	Character Size [y]	Character Size [x]	Display Format [x]	Display Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Viewing Area [x]	Viewing Area [y]	Character Format [x]	Character Format [y]	Background Color	Text Color
Lumex Opto/Components Inc. LOD-H02002DP-W	Passive	0.62 mm	0.67 mm	3.8 mm	37 mm	116 mm	OLED	5.5 V	2.4 V	40	3.22 mm	5.57 mm	20	2	80 °C	-40 C	8-Bit Parallel	75.52 mm	13.52 mm	5 Dots	8 Dots	Black	White
