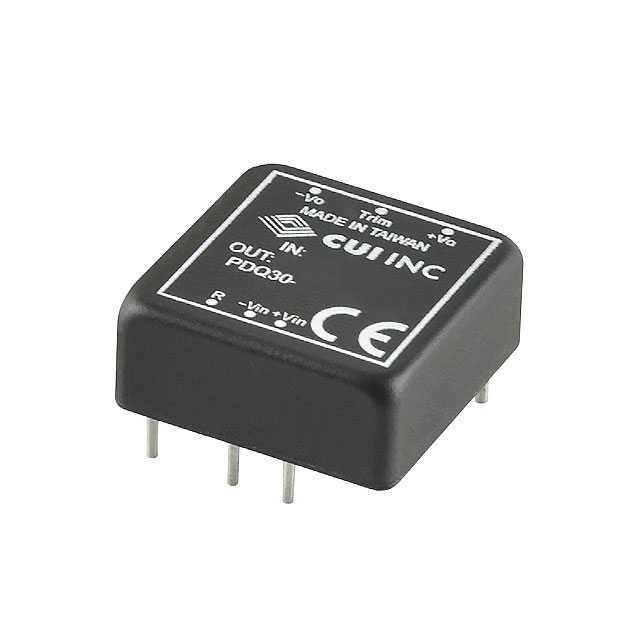

PDQ30 Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN 15VOUT 2A ISO REG DIP
| Part | Mounting Type | Package / Case | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Control Features | Applications | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Voltage - Isolation | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | 6-DIP Module | 2 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Active High Enable | ITE (Commercial) | 1 | 36 V | 89 % | Isolated Module | 30 Watts | -40 C | 105 ░C | 9 V | 1.5 kV | OCP OTP OVP Remote On/Off SCP UVLO | 15 V |
CUI Inc. | Through Hole | 6-DIP Module | 2 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Active High Enable | ITE (Commercial) | 1 | 75 V | 89 % | Isolated Module | 30 Watts | -40 C | 105 ░C | 18 V | 1.5 kV | OCP OTP OVP Remote On/Off SCP UVLO | 15 V |
CUI Inc. | Through Hole | 6-DIP Module | 2.5 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Active High Enable | ITE (Commercial) | 1 | 36 V | 89 % | Isolated Module | 30 Watts | -40 C | 105 ░C | 9 V | 1.5 kV | OCP OTP OVP Remote On/Off SCP UVLO | 12 V |
 CUI Inc. | Through Hole | 6-DIP Module | 7.5 A | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Active High Enable | ITE (Commercial) | 1 | 75 V | 88 % | Isolated Module | 30 Watts | -40 C | 105 ░C | 18 V | 1.5 kV | OCP OTP OVP Remote On/Off SCP UVLO | 3.3 V |
