842-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

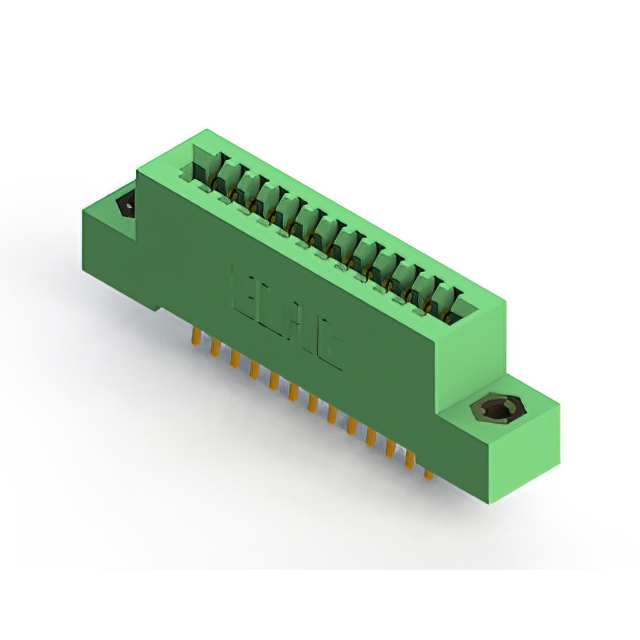

CONN EDGE SINGLE FML 26POS 0.100
| Part | Termination Rows | Material - Insulation | Mounting Type | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row | Card Type | Contact Finish | Pitch | Pitch | Number of Rows | Contact Material | Number of Positions | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Features | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Single | 26 | Non Specified - Single Edge | Gold | 0.1 " | 2.54 mm | 1 | Copper Alloy | 26 | Female | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Wire Wrap | 0.25 Ám | 10 Áin | Single | 26 | Non Specified - Single Edge | Gold | 0.1 " | 2.54 mm | 1 | Copper Alloy | 26 | Female | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 2 | Card Extender | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 2 | Card Extender | 2 | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Wire Wrap | 0.25 Ám | 10 Áin | Single | 26 | Non Specified - Single Edge | Gold | 0.1 " | 2.54 mm | 1 | Copper Alloy | 26 | Female | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Single | 26 | Non Specified - Single Edge | Gold | 0.1 " | 2.54 mm | 1 | Copper Alloy | 26 | Female | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 0.128 " | 3.25 mm | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Cantilever | Solder | 0.25 Ám | 10 Áin | Dual | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Copper Alloy | 26 | Female | 0.156 " | 3.96 mm | 2 | Card Extender | 2 |
