FI4D048 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Cladding Diameter [diameter] | Jacket Color | Type | Features | Jacket (Insulation) Material | Tensile Strength | Ratings | Style | Core Diameter [diameter] | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | 0 °C | 125 µm | Violet | Multimode | 48 Fibers Rip Cord | Poly-Vinyl Chloride (PVC) | 40.8 kg | OFNP | Multiple Fibers | 50 µm | 0.59 in | 14.99 mm | ||

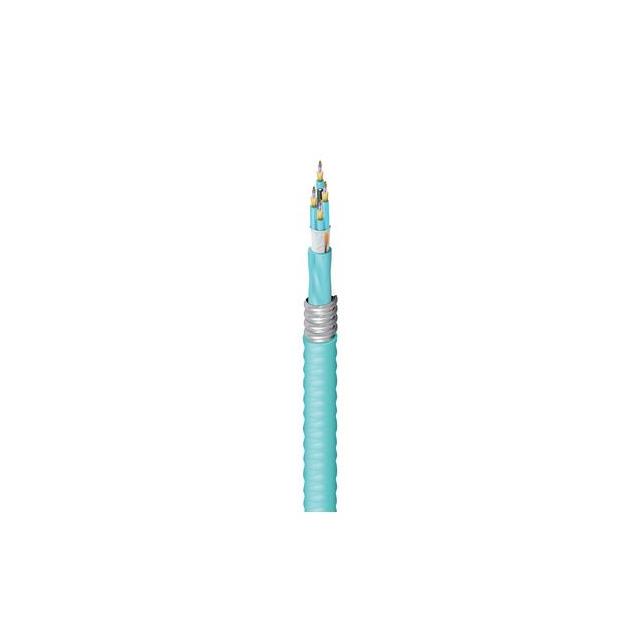

 Belden Inc. | 70 °C | 0 °C | 125 µm | Aqua | Multimode | 48 Fibers Armored | Poly-Vinyl Chloride (PVC) | 40.8 kg | OFCP | Multiple Fibers | 50 µm | 0.936 " | 23.77 mm | ||
 Belden Inc. | 70 °C | -20 ░C | 125 µm | Aqua | Multimode | 48 Fibers Rip Cord | Poly-Vinyl Chloride (PVC) | 40.8 kg | OFNR | Multiple Fibers | 50 µm | 0.664 in | 16.87 mm | ||
 Belden Inc. | 70 °C | -20 ░C | 125 µm | Violet | Multimode | 48 Fibers Rip Cord | Poly-Vinyl Chloride (PVC) | 40.8 kg | OFNR | Multiple Fibers | 50 µm | 0.664 in | 16.87 mm |
