12166 Series

Catalog

APD CON SKT CRIMP GOLD 0.5-1.5

Part	Contact Termination	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Finish Thickness	Contact Finish	Type	Contact Type	Termination Finish	Accessory Type	For Use With/Related Products	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Features	Contact Material	Contact Size	Contact Finish Thickness	Contact Finish Thickness

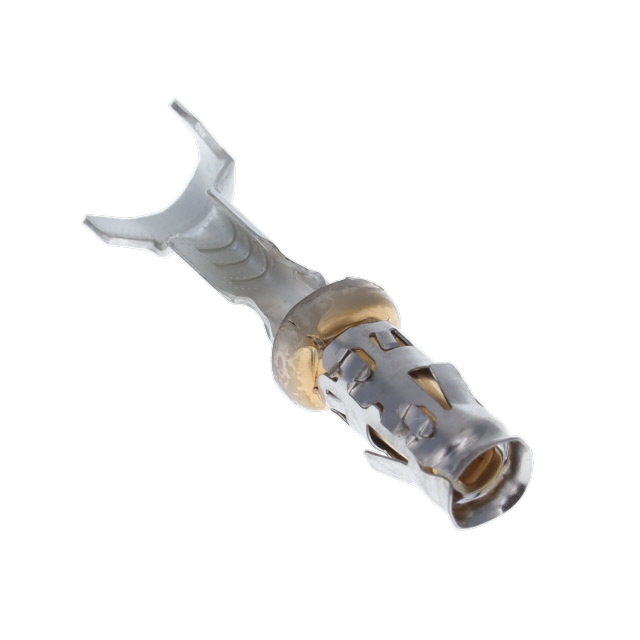

ITT Cannon, LLC 121668-0022	Crimp	0.5 mm²	1.5 mm²	Flash	Gold	Signal Stamped	Socket	Gold

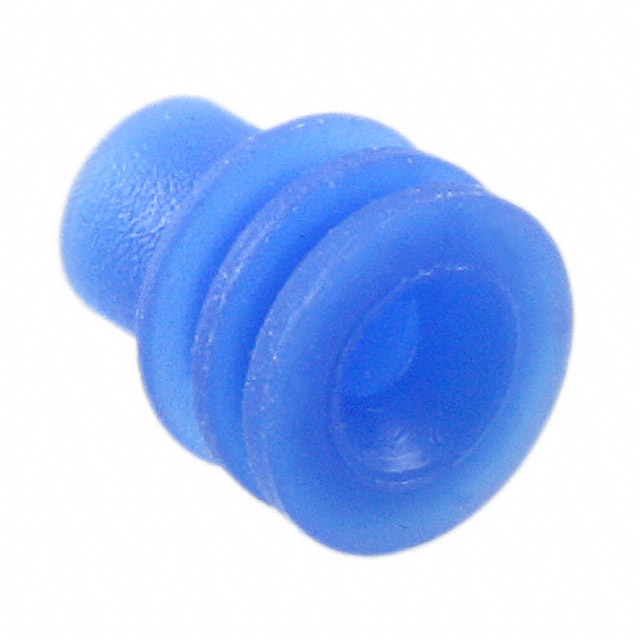

ITT Cannon, LLC 121668-0033									Wire Seal	APD 4-Way Connectors	Blue
ITT Cannon, LLC 121668-0222-PC	Crimp	0.75 mm²	1.5 mm²		Tin	Stamped	Socket	Tin

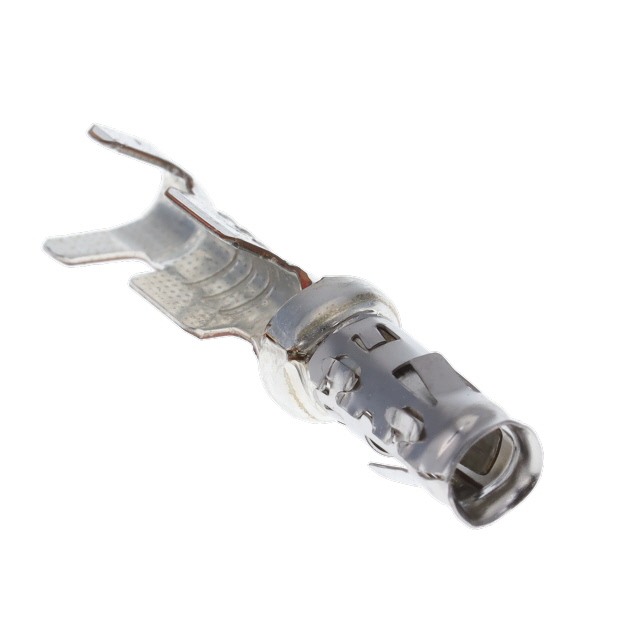

ITT Cannon, LLC 121668-0101	Crimp	1.5 mm²	2.5 mm²		Tin	Power Stamped	Socket					14 AWG	16 AWG	Insulation Support	Copper Alloy

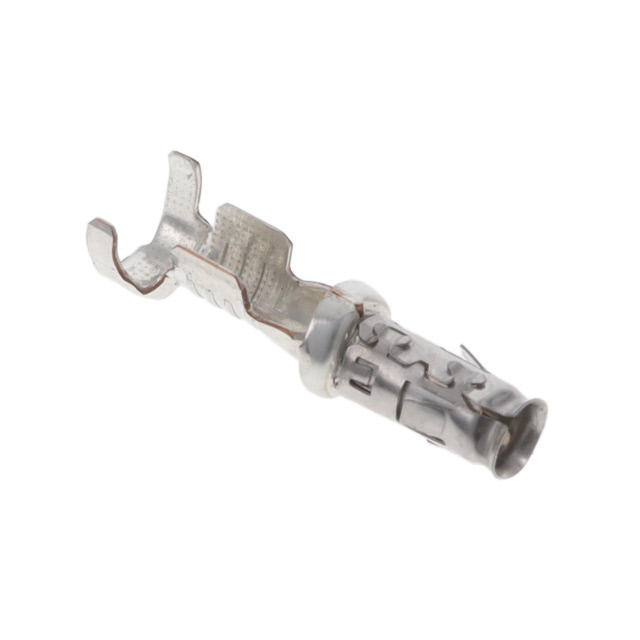

ITT Cannon, LLC 121668-0126	Crimp	1.5 mm²	2.5 mm²		Tin	Power Stamped	Socket	Tin				14 AWG	16 AWG
ITT Cannon, LLC 121668-0125	Crimp	0.5 mm²	1.5 mm²		Tin	Power Stamped	Socket	Tin				16 AWG	18 AWG
ITT Cannon, LLC 121668-0268/PC	Crimp	0.75 mm²	1.5 mm²		Gold	Signal Stamped	Socket					16 AWG	18 AWG	Insulation Support	Copper Alloy	16	31.5 µin	0.8 µm

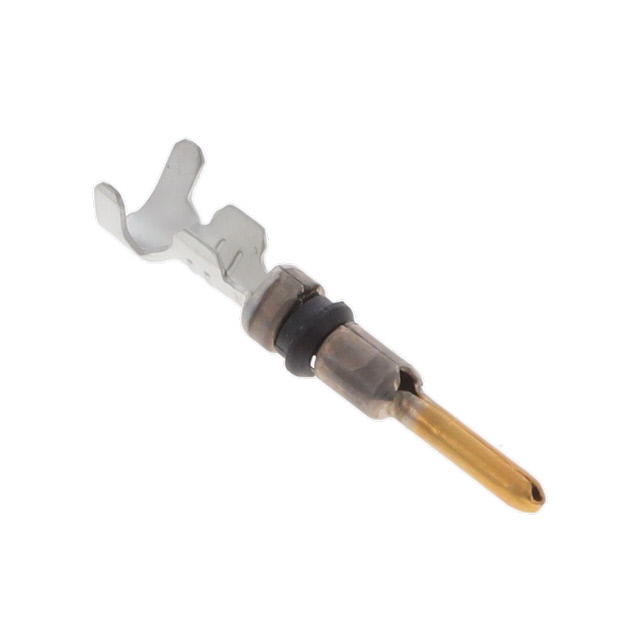

ITT Cannon, LLC 121668-0267	Crimp	0.75 mm²	1.5 mm²		Gold	Signal Machined	Pin	Gold									31.5 µin	0.8 µm
ITT Cannon, LLC 121668-0255	Crimp	0.75 mm²	1.5 mm²		Tin	Signal Machined	Pin	Tin
ITT Cannon, LLC 121668-0026	Crimp	0.5 mm²	1 mm²		Tin	Power Stamped	Pin	Tin				16 AWG	18 AWG
