PC16SH Series

Manufacturer: Amphenol Piher Sensing Systems

Catalog

POT 10K OHM 1/5W CARBON LINEAR

Part	Temperature Coefficient	Resistive Material	Bushing Thread Pitch	Bushing Thread	Bushing Thread Diameter	Tolerance	Number of Gangs	Mounting Type	Termination Style	Actuator Length	Adjustment Type	Taper	Rotation	Actuator Type	Number of Turns	Actuator Diameter	Built in Switch	Power (Watts)	Power (Watts) Options	Resistance	Size - Body Shape	Size - Body Face Width	Size - Body Face Length

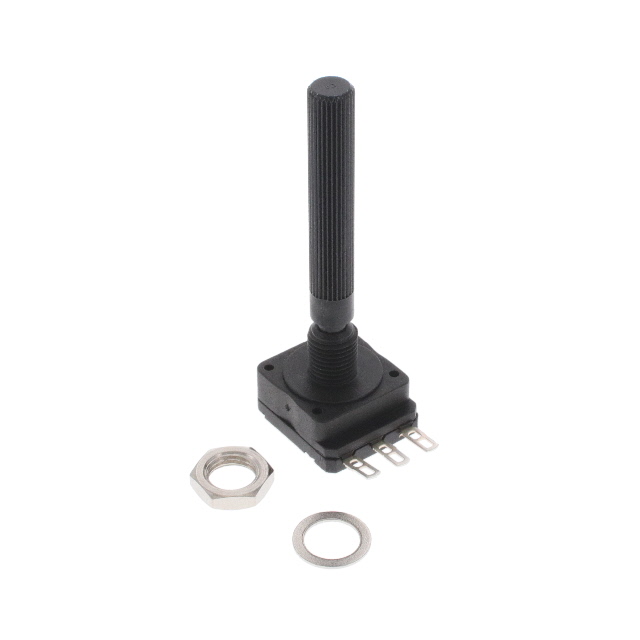

Amphenol Piher Sensing Systems PC16SH-07CP06-103A2020-TA	300 ppm/°C	Carbon	0.75 mm	M7 x 0.75	7 mm	20 %	1	Panel Mount	Solder Lug	1.772 in	User Defined	Linear	300 °	Knurled	1 turns	0.236 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in

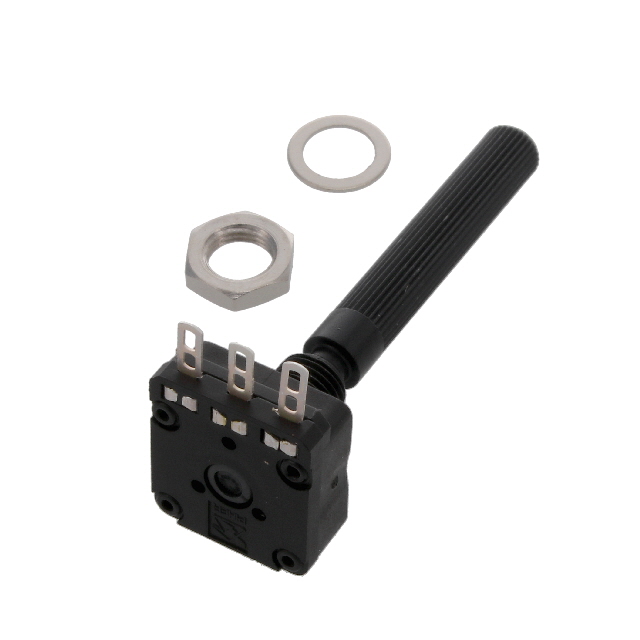

Amphenol Piher Sensing Systems PC16SH-07CP06-104A2020-TA	300 ppm/°C	Carbon	0.75 mm	M7 x 0.75	7 mm	20 %	1	Panel Mount	Solder Lug	1.772 in	User Defined	Linear	300 °	Knurled	1 turns	0.236 in	None	0.2 W	1/5W	100 kOhm	Rectangular	0.63 in	0.709 in

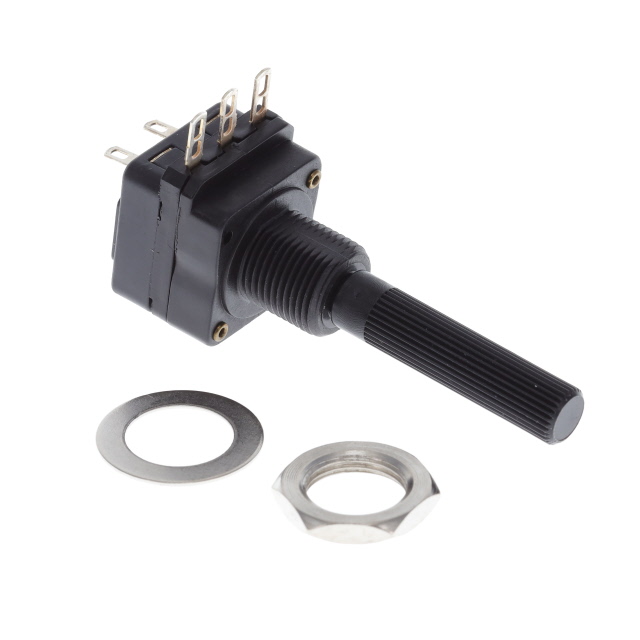

Amphenol Piher Sensing Systems PC16SH-10CP05-103A2020-C-TA	300 ppm/°C	Carbon	0.75 mm	M10 x 0.75	10 mm	20 %	1	Panel Mount	Solder Lug	1.398 in	User Defined	Linear	300 °	Knurled	1 turns	0.236 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in

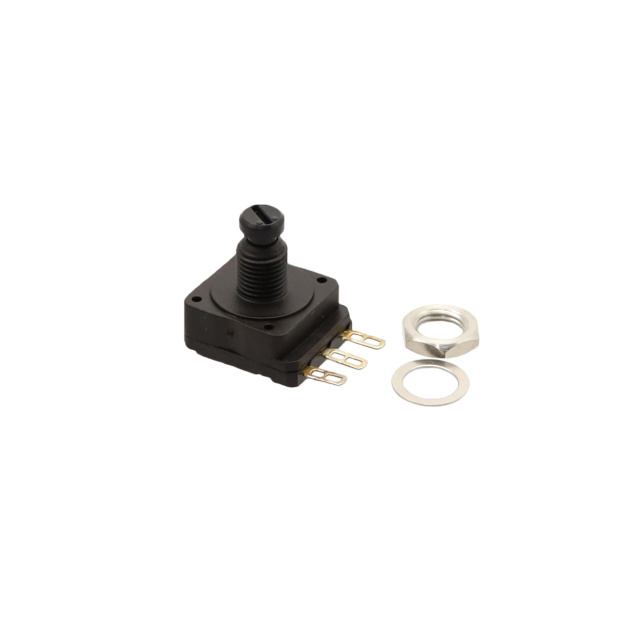

Amphenol Piher Sensing Systems PC16SH-07CP20-103A2020-TA	300 ppm/°C	Carbon	0.75 mm	M7 x 0.75	7 mm	20 %	1	Panel Mount	Solder Lug	0.453 in	User Defined	Linear	300 °	Flatted	1 turns	0.157 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in

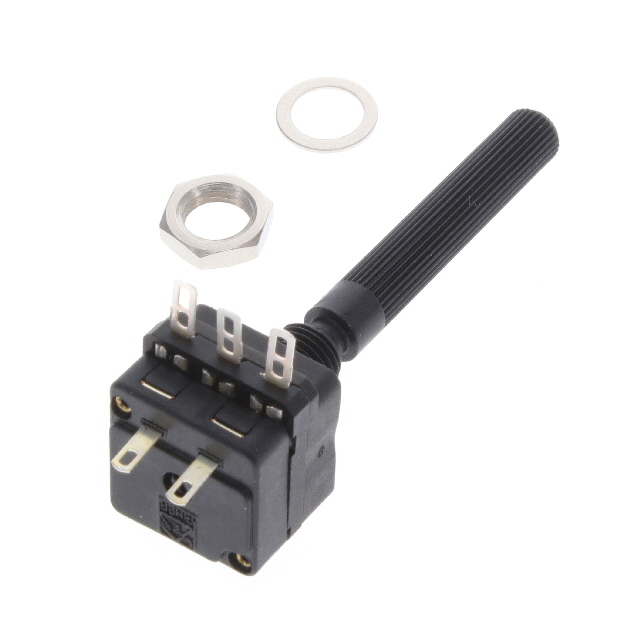

Amphenol Piher Sensing Systems PC16SH-07CP06-103A2020-C-TA	300 ppm/°C	Carbon	0.75 mm	M7 x 0.75	7 mm	20 %	1	Panel Mount	Solder Lug	1.772 in	User Defined	Linear	300 °	Knurled	1 turns	0.236 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in

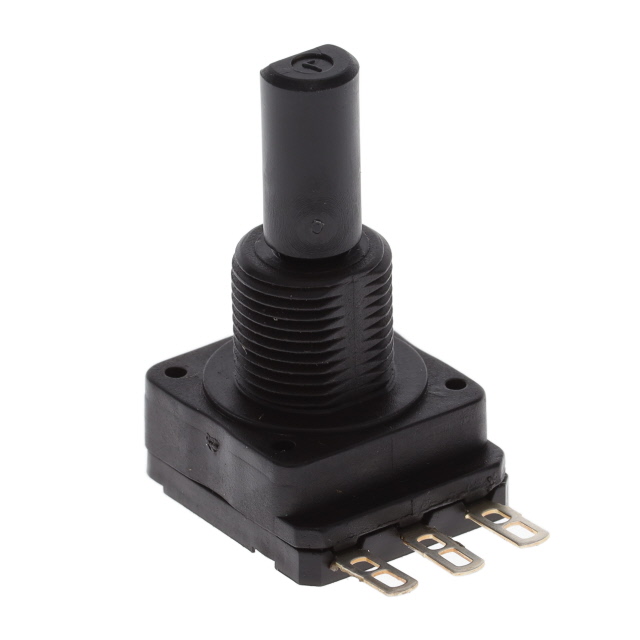

Amphenol Piher Sensing Systems PC16SH-10CP16-105A2020-TA	300 ppm/°C	Carbon	0.75 mm	M10 x 0.75	10 mm	20 %	1	Panel Mount	Solder Lug	0.846 in	User Defined	Linear	300 °	Flatted	1 turns	0.236 in	None	0.2 W	1/5W	1 MOhm	Rectangular	0.63 in	0.709 in

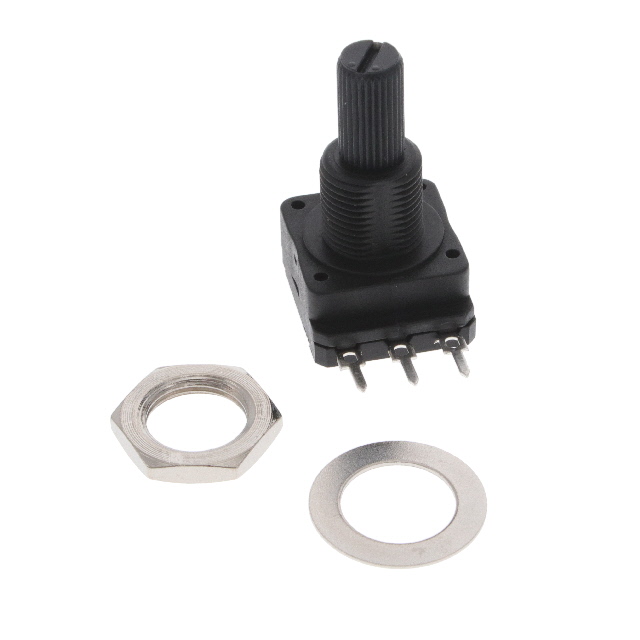

Amphenol Piher Sensing Systems PC16SH-10IP11-473A2020-TA	300 ppm/°C	Carbon	0.75 mm	M10 x 0.75	10 mm	20 %	1	Panel Mount	PC Pins	0.787 in	Side Adjustment	Linear	300 °	Knurled	1 turns	0.246 in	None	0.2 W	1/5W	47 kOhm	Rectangular	0.63 in	0.709 in

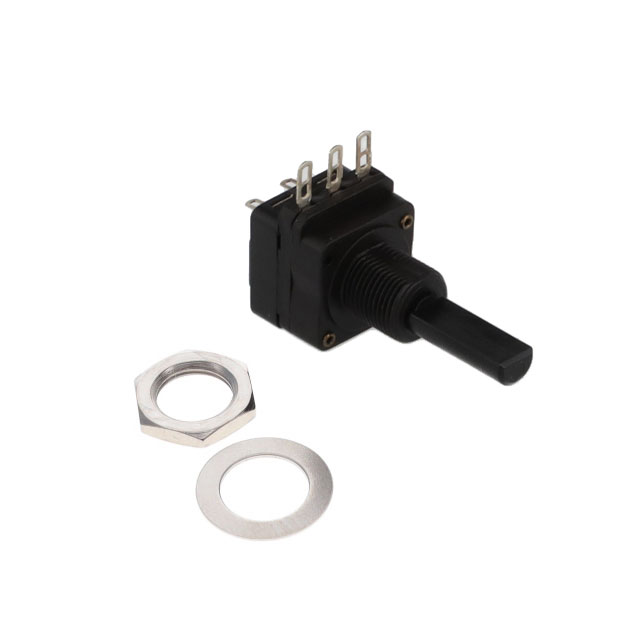

Amphenol Piher Sensing Systems PC16SH-10CP22-103A2020-C-TA	300 ppm/°C	Carbon	0.75 mm	M10 x 0.75	10 mm	20 %	1	Panel Mount	Solder Lug	0.984 in	User Defined	Linear	300 °	Flatted	1 turns	0.236 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in

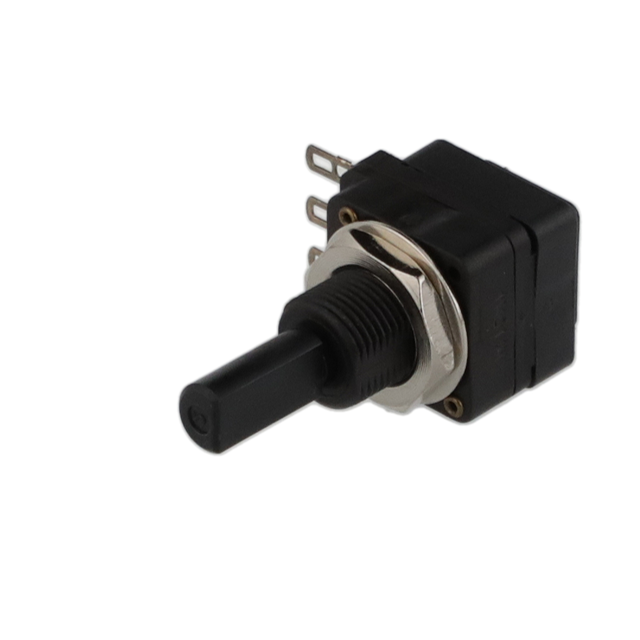

Amphenol Piher Sensing Systems PC16SH-10CP16-105A2020-C-TA	300 ppm/°C	Carbon	0.75 mm	M10 x 0.75	10 mm	20 %	1	Panel Mount	Solder Lug	0.846 in	User Defined	Linear	300 °	Flatted	1 turns	0.236 in	None	0.2 W	1/5W	1 MOhm	Rectangular	0.63 in	0.709 in

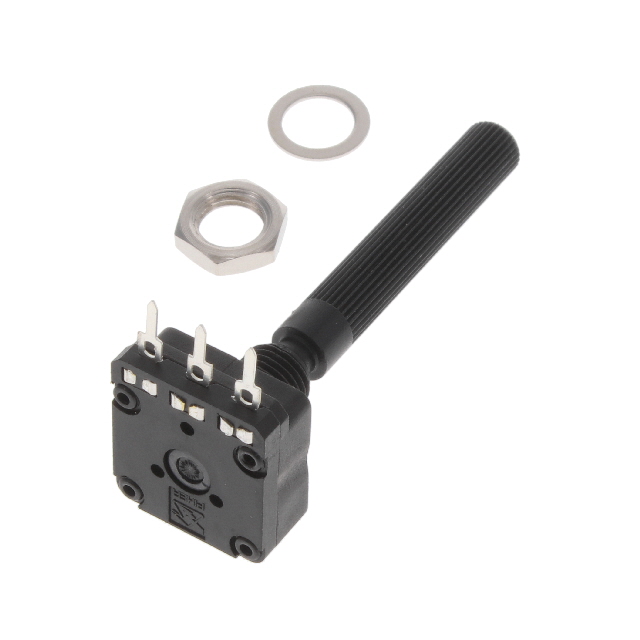

Amphenol Piher Sensing Systems PC16SH-07IP06-103A2020-TA	300 ppm/°C	Carbon	0.75 mm	M7 x 0.75	7 mm	20 %	1	Panel Mount	PC Pins	1.772 in	Side Adjustment	Linear	300 °	Knurled	1 turns	0.236 in	None	0.2 W	1/5W	10 kOhm	Rectangular	0.63 in	0.709 in
