9613-1523 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

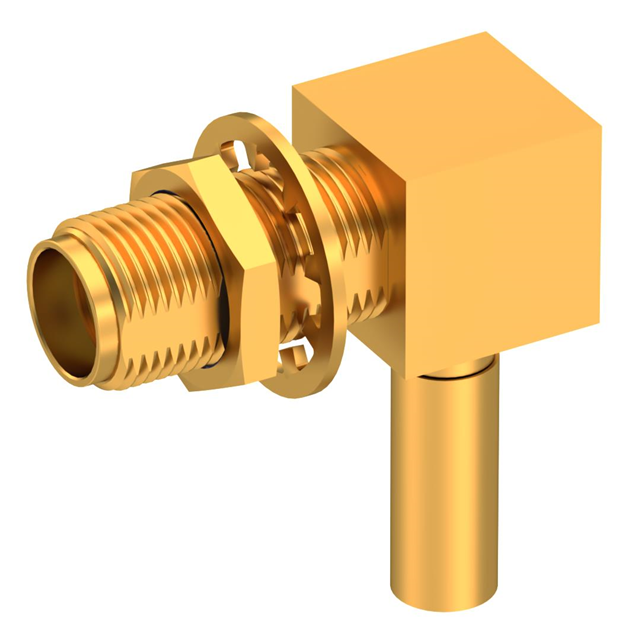

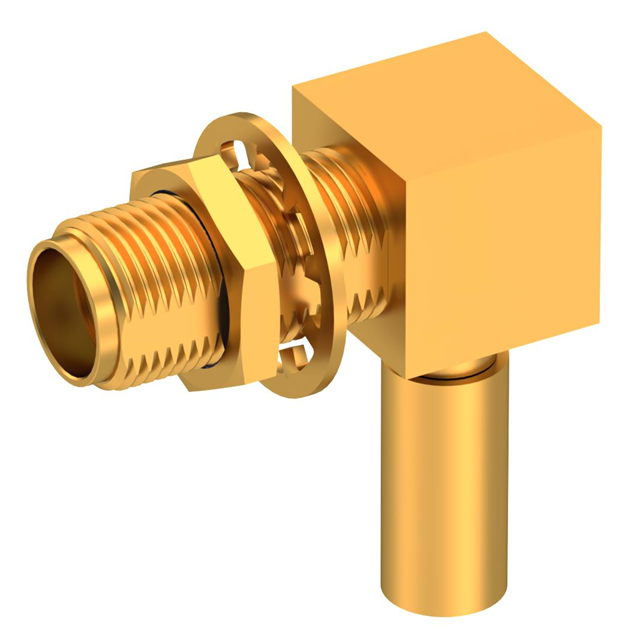

SMA / RIGHT ANGLE JACK FEMALE CR
| Part | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Body Material | Dielectric Material | Connector Style | Fastening Type | Connector Type | Frequency - Max [Max] | Impedance | Shield Termination | Center Contact Material | Mounting Feature | Cable Group | Mounting Type | Contact Termination | Number of Ports | Housing Color | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | SMA | Threaded | Female Socket Jack | 12.4 GHz | 50 Ohms | Crimp | Beryllium Copper | Bulkhead - Front Side Nut | 188 316 RG-174 | Panel Mount Right Angle | Crimp | 1 | Gold | ||
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | SMA | Threaded | Female Socket Jack | 18 GHz | 50 Ohms | Crimp | Beryllium Copper | Bulkhead - Front Side Nut | RD-316 RG-316DS | Panel Mount Right Angle | Crimp | 1 | Gold | 1 Connector 1 Lockwasher 1 Nut | ||
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | SMA | Threaded | Female Socket Jack | 18 GHz | 50 Ohms | Crimp | Beryllium Copper | Bulkhead - Front Side Nut | RG-178 | Panel Mount Right Angle | Crimp | 1 | Gold | 1 Connector 1 Lockwasher 1 Nut | 196 |
