M55-710 Series

Catalog

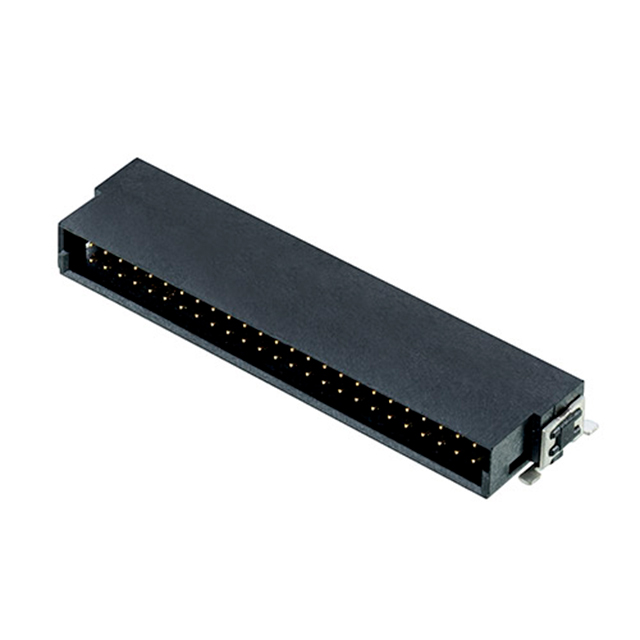

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 68 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Material Flammability Rating	Termination	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Height	Insulation Height	Features	Number of Positions	Mounting Type	Insulation Material	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Shrouding	Number of Rows [custom]	Contact Material	Contact Shape	Current Rating (Amps)	Insulation Color
Harwin Inc. M55-7106842R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	68 positions	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
Harwin Inc. M55-7105042R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	50	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
Harwin Inc. M55-7102642R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	26	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
Harwin Inc. M55-7101242R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	12	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
Harwin Inc. M55-7101642R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	16	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
Harwin Inc. M55-7102042R	2.54 µm	100 µin	Automotive General Purpose Industrial	UL94 V-0	Solder	Header	0.05 in	1.27 mm	All	Latch Lock	1.27 mm	0.05 in	-55 C	125 °C	Gold	0.165 in	4.2 mm	Board Guide Solder Retention	20	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)	Tin	4 mm	0.157 in	0.025 µm	1 µin	Male Pin	Shrouded - 4 Wall	2	Phosphor Bronze	Rectangular	1.2 A	Black
