ASMT-JR10 Series
Manufacturer: Broadcom Limited
Beta
⌘K
MS JD,1W RED
| Part | Temperature - Test | Mounting Type | Current - Test | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Wavelength | Viewing Angle | Lumens/Watt @ Current - Test | Package / Case | Supplier Device Package | Luminous Flux @ Current/Temperature | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Color | Voltage - Forward (Vf) (Typ) | Thermal Resistance of Package | Wavelength [Min] | Wavelength [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

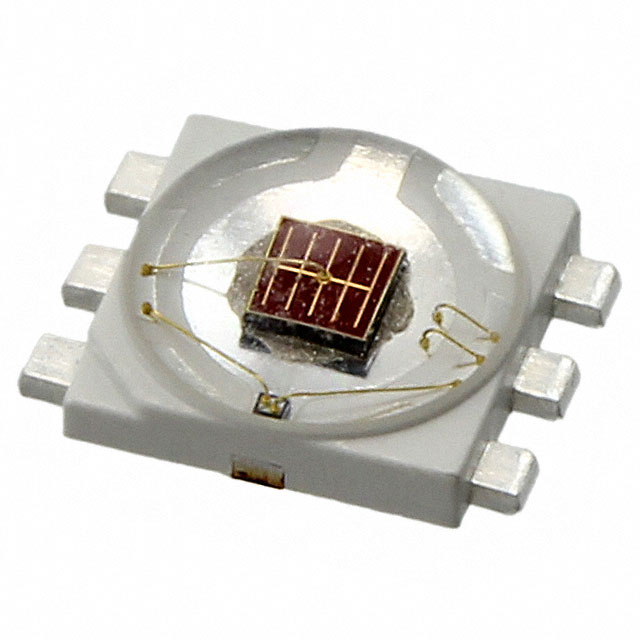

 Broadcom Limited | 25 °C | Surface Mount | 350 mA | 500 mA | 0.157 " | 4 mm | 0.157 in | 4 mm | 625 nm | 165 ° | 84 lm/W | 1616 (4040 Metric) | 1616 | 62 lm | 0.077 in | 1.95 mm | Red | 2.1 V | |||

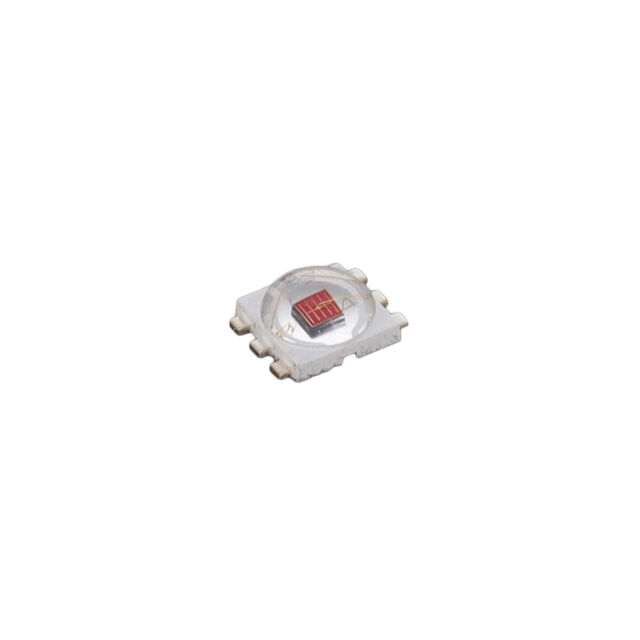

 Broadcom Limited | 25 °C | Surface Mount | 350 mA | 500 mA | 0.157 " | 4 mm | 0.157 in | 4 mm | 628 nm | 165 ° | 95 lm/W | 6-SMD Flat Lead Exposed Pad | 70 lm | 0.077 in | 1.95 mm | Red | 2.1 V | 9 °C/W | 620 nm | 635 nm |
