LF2110 Series
Manufacturer: LITTELFUSE
Beta
⌘K

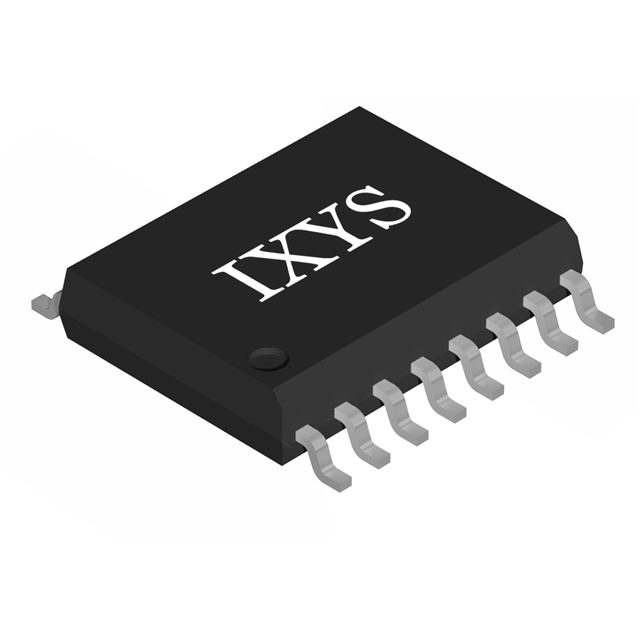

HI LO SIDE DRVR 500V 2A SOIC-16/ TR
| Part | Driven Configuration | Gate Type | Input Type | Supplier Device Package | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | High Side Voltage - Max (Bootstrap) [Max] | Mounting Type | Package / Case | Package / Case | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Drivers | Channel Type | Logic Voltage - VIL, VIH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Half-Bridge | IGBT N-Channel MOSFET | Non-Inverting | 16-SOIC | 13 ns | 15 ns | 500 V | Surface Mount | 16-SOIC | 7.5 mm | 0.295 " | 20 V | 10 VDC | 2.5 A | 2.5 A | 125 °C | -40 °C | 2 | Independent | 5 V 9.5 V |
LITTELFUSE | Half-Bridge | IGBT MOSFET (N-Channel) | Non-Inverting | 16-SOIC | 13 ns | 15 ns | 500 V | Surface Mount | 16-SOIC | 7.5 mm | 0.295 " | 20 V | 10 VDC | 2.5 A | 2.5 A | 125 °C | -40 °C | 2 | Independent | 5 V 9.5 V |
