MH4028 Series

Catalog

FAN AXIAL 40X28MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Bearing Type	Noise	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Termination	Static Pressure	Static Pressure	Features	Weight [custom]	Weight [custom]	Air Flow	Air Flow	Width [x]	RPM	Fan Type

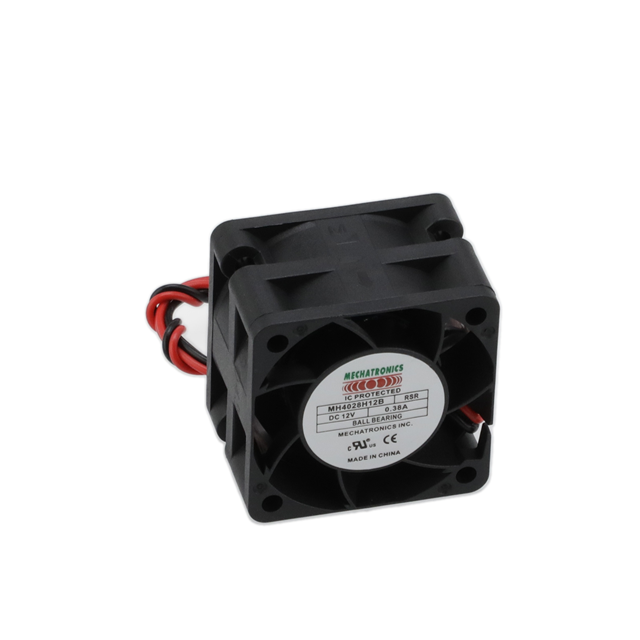

Mechatronics Fan Group MH4028H12B-RSR	0.35 A	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	12 VDC	2 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart Thermal Overload Protector (TOP)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial

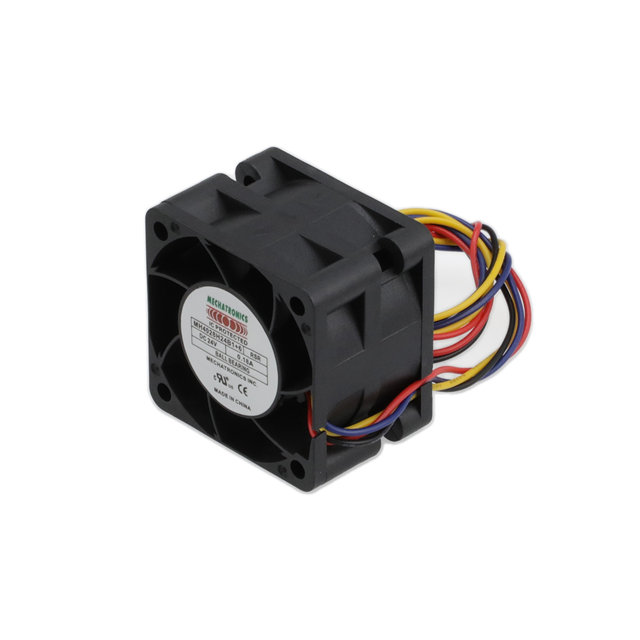

Mechatronics Fan Group MH4028H24B1+6-RSR	150 mA	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	24 VDC	4 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial
Mechatronics Fan Group MH4028H12B1+6-RSR-PC	0.35 A	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	12 VDC	4 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart Paraylene Coating PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial
Mechatronics Fan Group MH4028L12B-RSR	120 mA	Plastic	Plastic	Ball	39 dB(A)	40 mm	40 mm	12 VDC	2 Wire Leads	82.2 Pa	0.33 in H2O	Auto Restart Thermal Overload Protector (TOP)	0.089 lb	40.37 g	12.8 CFM	0.359 m³/min	28 mm	8000 RPM	Tubeaxial

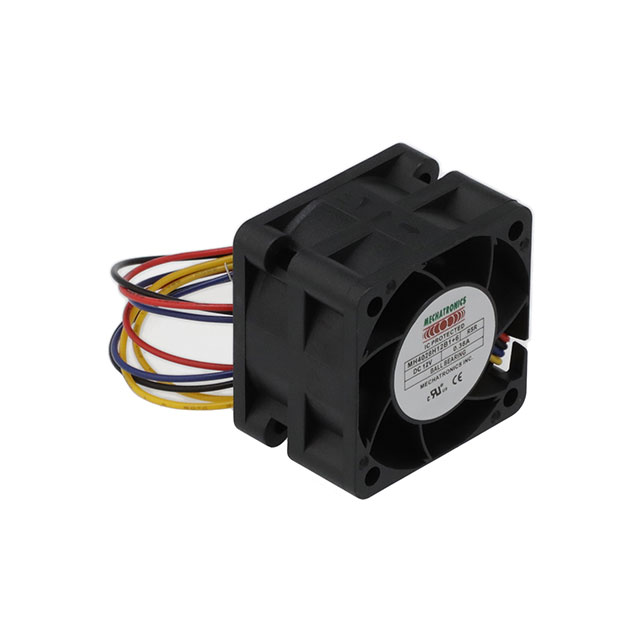

Mechatronics Fan Group MH4028H12B1+6-RSR	0.35 A	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	12 VDC	4 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial

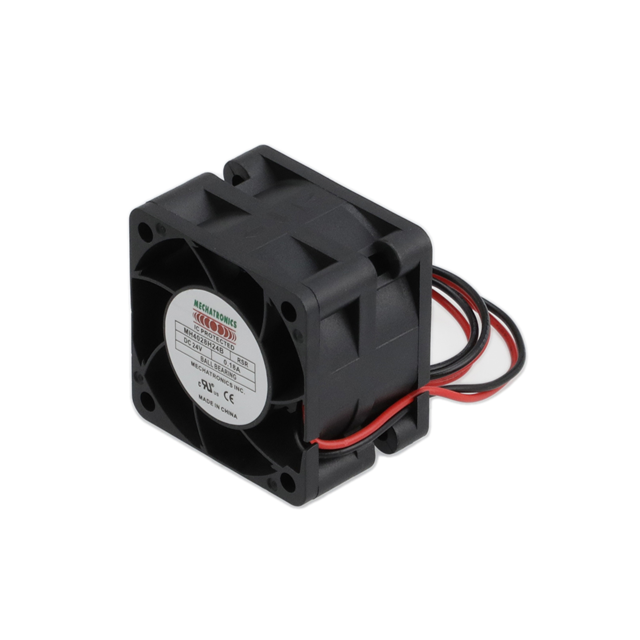

Mechatronics Fan Group MH4028H24B-RSR	150 mA	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	24 VDC	2 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart Thermal Overload Protector (TOP)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial

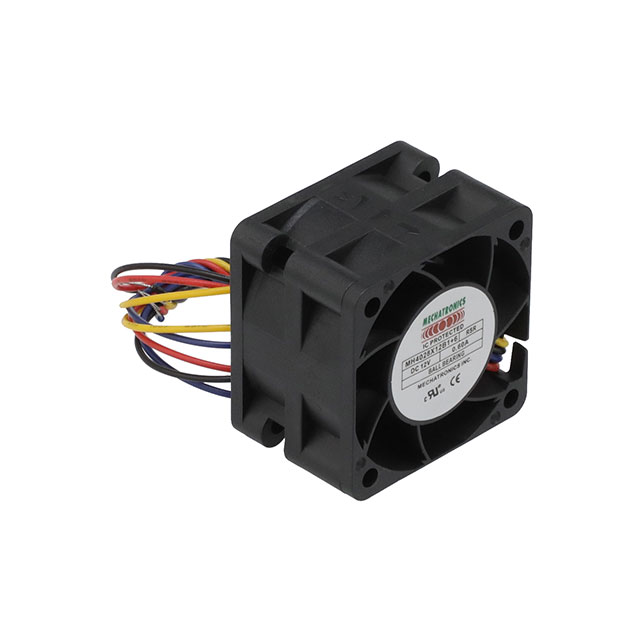

Mechatronics Fan Group MH4028X12B1+6-RSR	600 mA	Plastic	Plastic	Ball	63 dB	40 mm	40 mm	12 VDC	4 Wire Leads	330 Pa	1.325 in H2O	Auto Restart PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.089 lb	40.37 g	25.2 CFM	0.706 mł/min	28 mm	16500 RPM	Tubeaxial

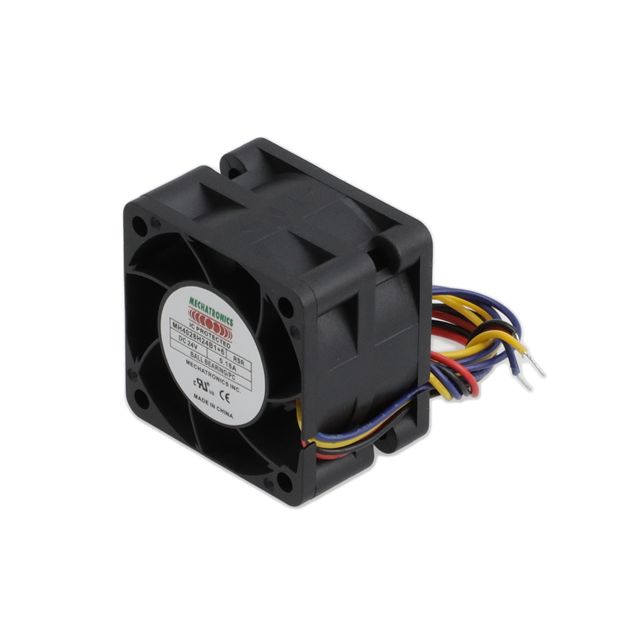

Mechatronics Fan Group MH4028H24B1+6-RSR-PC	150 mA	Plastic	Plastic	Ball	52 dB	40 mm	40 mm	24 VDC	4 Wire Leads	219.2 Pa	0.88 in H2O	Auto Restart Parylene Coating PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.089 lb	40.37 g	21.1 CFM	0.591 m³/min	28 mm	13000 RPM	Tubeaxial
