SRCN1A13 Series

Catalog

STANDARD CIRCULAR CONNECTOR 3P PLUG CABLE CONNECTING

Part	Orientation	Primary Material	Fastening Type	Mounting Type	Cable Opening	Cable Opening	Shell Finish	Voltage Rating	Applications	Features	Connector Type	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Shell Material	Contact Material	Current Rating (Amps)	Backshell Material, Plating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Number of Positions

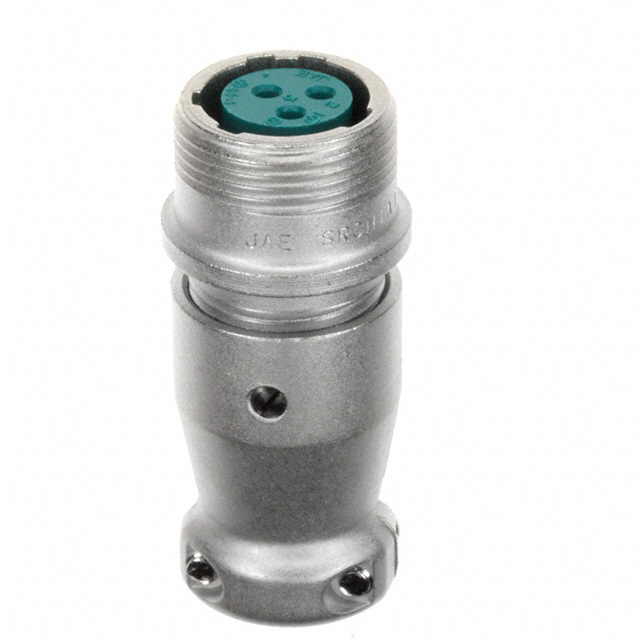

JAE Electronics SRCN1A13-3S	N (Normal)	Metal	Threaded	Free Hanging (In-Line)	8.5 mm	0.335 in	Nickel	250 VAC 350 VDC	Communication Systems Measurement Telecommunications Test Equipment	Backshell Cable Clamp	Receptacle Female Sockets	13-3	Silver	UL94 V-0	Aluminum Alloy	Copper Alloy	10 A	Aluminum Alloy Nickel	Silver	85 °C	-25 °C	Plastic

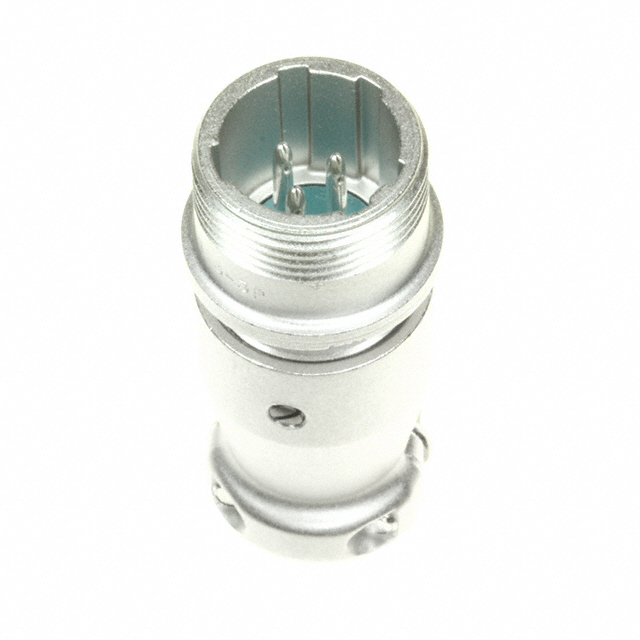

JAE Electronics SRCN1A13-3P	N (Normal)	Metal	Threaded	Free Hanging (In-Line)	8.5 mm	0.335 in	Nickel	250 VAC 350 VDC	Communication Systems Measurement Telecommunications Test Equipment	Backshell Cable Clamp	Receptacle Male Pins	13-3	Silver	UL94 V-0	Aluminum Alloy	Copper Alloy	10 A	Aluminum Alloy Nickel	Silver	85 °C	-25 °C	Plastic

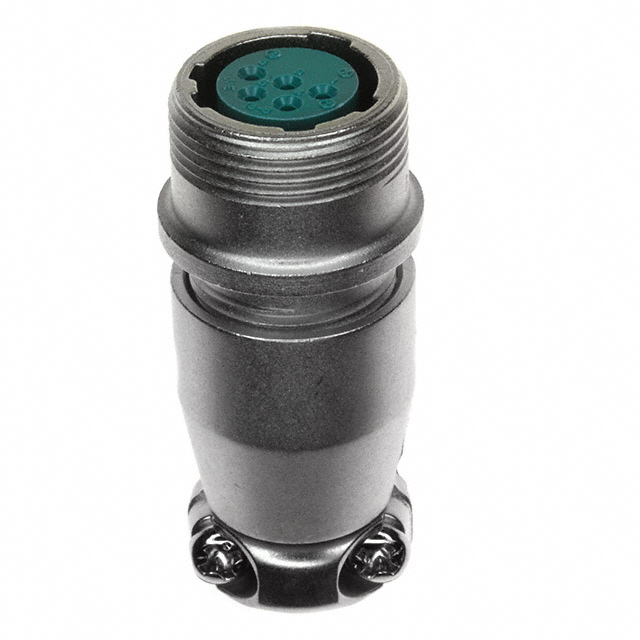

JAE Electronics SRCN1A13-5S	N (Normal)	Metal	Threaded	Free Hanging (In-Line)	8.5 mm	0.335 in	Nickel	250 VAC 350 VDC	Communication Systems Measurement Telecommunications Test Equipment	Backshell Cable Clamp	Receptacle Female Sockets	13-5	Silver	UL94 V-0	Aluminum Alloy	Copper Alloy	5 A	Aluminum Alloy Nickel	Silver	85 °C	-25 °C	Plastic	5
