JB15HBPE Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Mechanical Life	Actuator Material	Actuator Orientation	Illumination Type, Color	Mounting Type	Illumination	Features	Contact Rating @ Voltage	Termination Style	Outline [x]	Outline [y]	Operating Force	Switch Function	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Circuit	Actuator Height off PCB, Vertical [z]

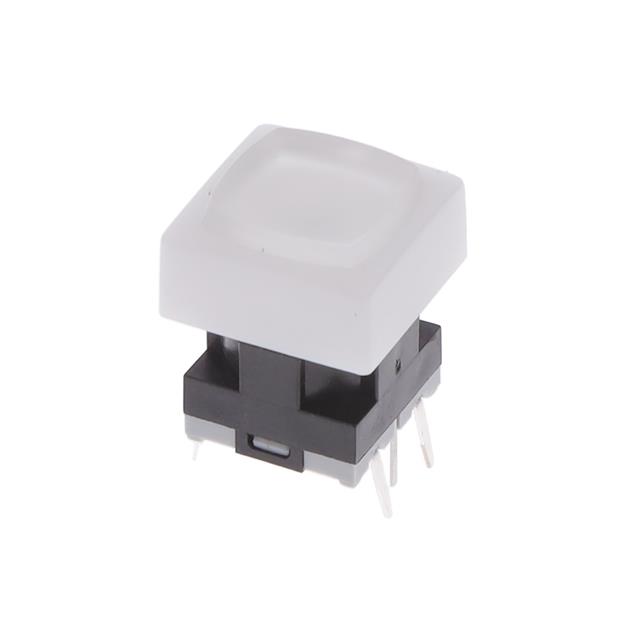

NKK Switches JB15HBPE-BB	0.3 mm	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Top Actuated	LED Yellow	Through Hole	Illuminated	Process Sealed	0.125 A 24 VDC	PC Pin	10 mm	10 mm	265 gf	Off-Mom	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	2 VDC	SPST-NO	14.7 mm
NKK Switches JB15HBPE-JB	0.3 mm	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Top Actuated	LED Yellow	Through Hole	Illuminated	Process Sealed	0.125 A 24 VDC	PC Pin	10 mm	10 mm	265 gf	Off-Mom	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	2 VDC	SPST-NO	14.7 mm
NKK Switches JB15HBPE-JE	0.3 mm	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Top Actuated	LED Yellow	Through Hole	Illuminated	Process Sealed	0.125 A 24 VDC	PC Pin	10 mm	10 mm	265 gf	Off-Mom	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	2 VDC	SPST-NO	14.7 mm

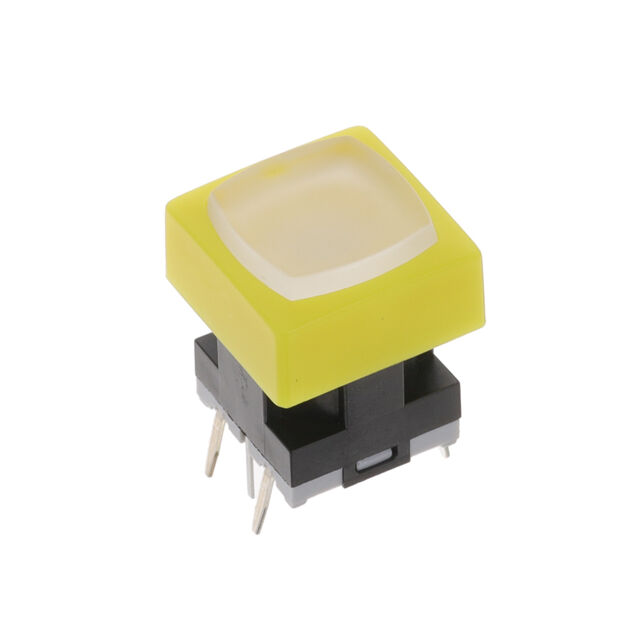

NKK Switches JB15HBPE-BE	0.3 mm	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Top Actuated	LED Yellow	Through Hole	Illuminated	Process Sealed	0.125 A 24 VDC	PC Pin	10 mm	10 mm	265 gf	Off-Mom	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	2 VDC	SPST-NO	14.7 mm
NKK Switches JB15HBPE-BC	0.3 mm	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Top Actuated	LED Yellow	Through Hole	Illuminated		0.13 A 24 VDC	PC Pin	10 mm	10 mm	265 gf	Off-Mom	IP67 - Dust Tight Waterproof	Square Button	-25 °C	70 °C	2 VDC	SPST-NO	14.7 mm
