5590303 Series

Manufacturer: DIALIGHT

Catalog

LED SNAP-IN PANEL 5MM 12V YLW

Part	Wavelength - Peak	Viewing Angle	Lens Style	Lens Size	Lens Size	Panel Cutout Shape	Voltage	Ratings	Type	Lamp Color	Current	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lens Transparency	Millicandela Rating	Termination Style	Termination Style	Termination Style	Lens Color

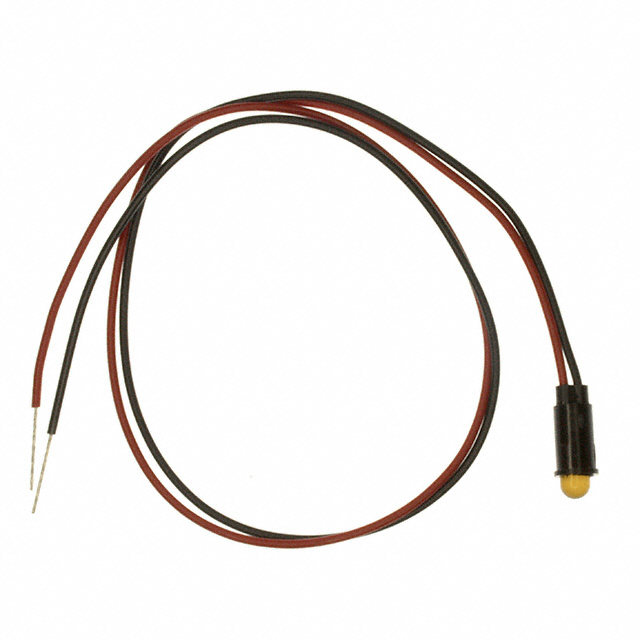

DIALIGHT 5590303007F	583 nm	60 °	Round with Domed Top	5 mm	T-1 3/4	Round	12 V	DC	LED	Yellow	15 mA	6.35 mm	0.25 in	Diffused	8 mcd	Wire Leads	14 in	355.6 mm
DIALIGHT 5590303001F	583 nm	60 °	Round with Domed Top	5 mm	T-1 3/4	Round	12 V	DC	LED	Yellow	15 mA	6.35 mm	0.25 in		8 mcd	PC Pin

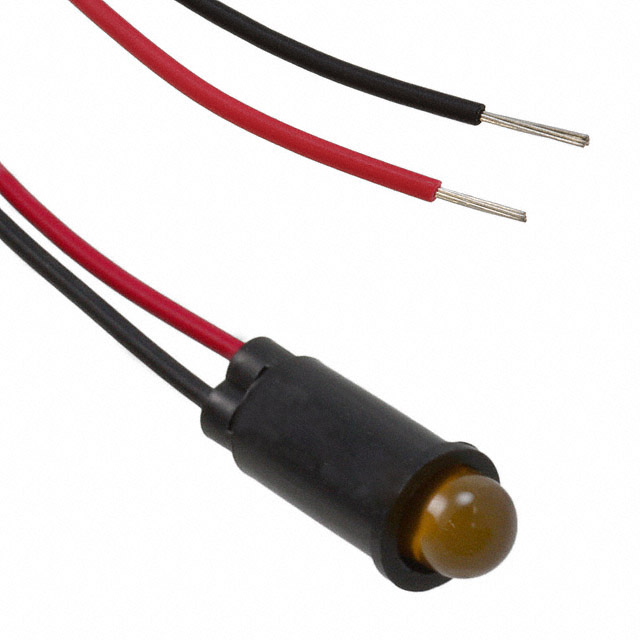

DIALIGHT 5590303023F	583 nm	60 °	Round with Domed Top	5 mm	T-1 3/4	Round	12 V	DC	LED	Yellow	15 mA	6.35 mm	0.25 in		8 mcd

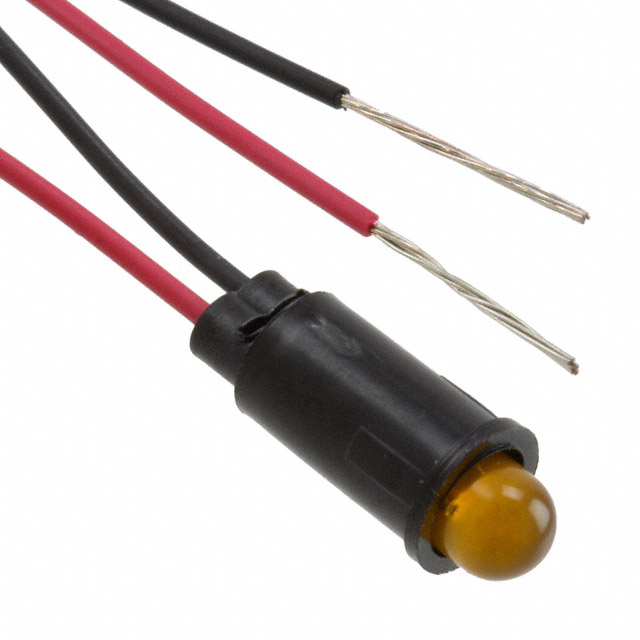

DIALIGHT 5590303027F	583 nm	60 °	Round with Domed Top	5 mm	T-1 3/4	Round	12 V	DC	LED	Yellow	15 mA	6.35 mm	0.25 in		8 mcd	Wire Leads	14 in	355.6 mm

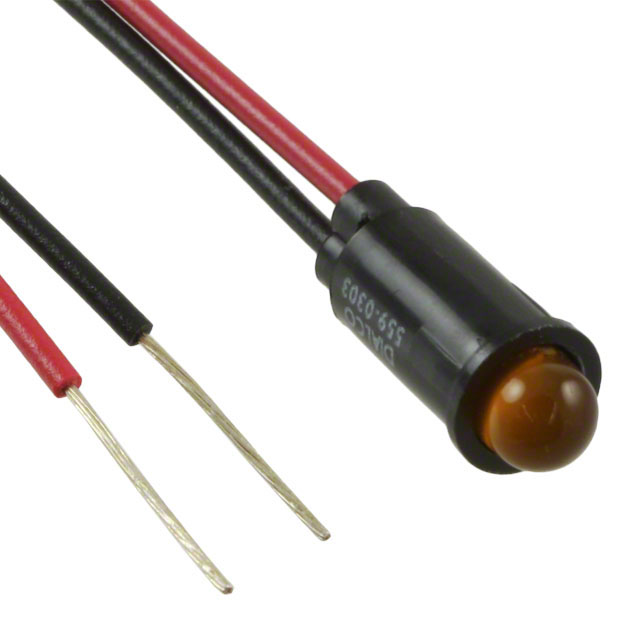

DIALIGHT 5590303003F	583 nm	60 °	Round with Domed Top	5 mm	T-1 3/4	Round	12 V	DC	LED	Yellow	15 mA	6.35 mm	0.25 in	Diffused	8 mcd				Yellow
