DP-101 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SENSOR DIGITAL PRESSURE PNP

Part	Pressure Type	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Package / Case	Maximum Pressure	Maximum Pressure	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Port Style	Output Type	Port Size	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Port Size [custom]	Port Size [custom]	Port Size [custom]	Operating Pressure	Operating Pressure	Supplier Device Package	Port Size

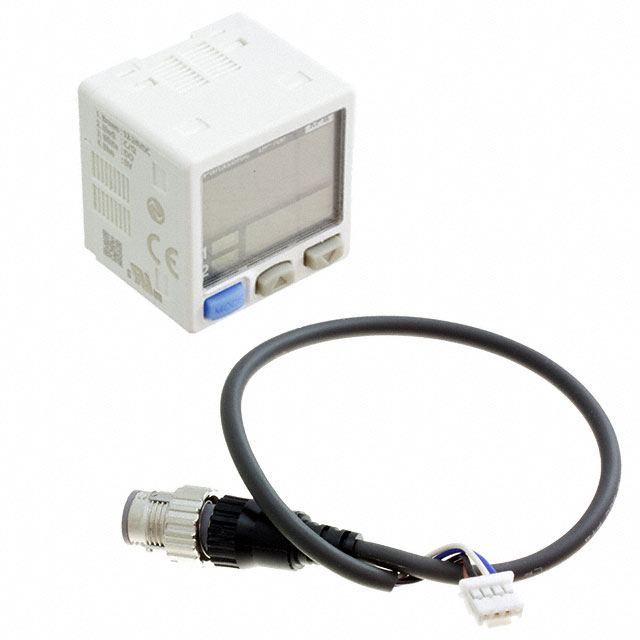

Panasonic Industrial Automation Sales DP-101ZL3-M-P-C	Gauge	100 kPa	-1 bar	-14.5 PSI	14.5 PSI	Module Box with Display	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	PNP - Open Collector	Female - M5	Industrial Automation	12 V	24 V	Connector
Panasonic Industrial Automation Sales DP-101A	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage NPN - Open Collector		Industrial Automation	12 V	24 V	Connector	M5	3.18 mm	1/8"	100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101Z-P	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	PNP - Open Collector		Industrial Automation	12 V	24 V	Connector	M5	3.18 mm	1/8"	100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101ZA-P	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage PNP - Open Collector		Industrial Automation	12 V	24 V	Connector	M5	3.18 mm	1/8"	100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101A-N-J	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage NPN - Open Collector	M5	Industrial Automation	12 V	24 V	Connector				100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101-M	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	NPN - Open Collector	Female - M5	Industrial Automation	12 V	24 V	Connector				100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101-M-P	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	PNP - Open Collector	M5	Industrial Automation	12 V	24 V	Connector				100 kPa	14.5 PSI	Module	3.18 mm
Panasonic Industrial Automation Sales DP-101A-E-P	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage PNP - Open Collector	M5	Industrial Automation	12 V	24 V	Connector				100 kPa	14.5 PSI		3.18 mm
Panasonic Industrial Automation Sales DP-101A-N-P-J	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage PNP - Open Collector	M5	Industrial Automation	12 V	24 V	Connector				100 kPa	14.5 PSI
Panasonic Industrial Automation Sales DP-101ZA	Vented Gauge					Module	500 kPa	72.52 PSI	-10 °C	50 °C	Threaded	Analog Current/Voltage NPN - Open Collector		Industrial Automation	12 V	24 V	Connector	M5	3.18 mm	1/8"	100 kPa	14.5 PSI
