0461-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall	Length - Overall	Contact Material	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0461-1-15-15-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.25 Ám	10 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-80-11-84-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Tin	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	2.54 µm	100 µin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-01-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.25 Ám	10 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-01-21-02-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Tin-Lead	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	2.54 µm	100 µin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-01-11-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.02 in	0.015 "		Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper	0.51 mm

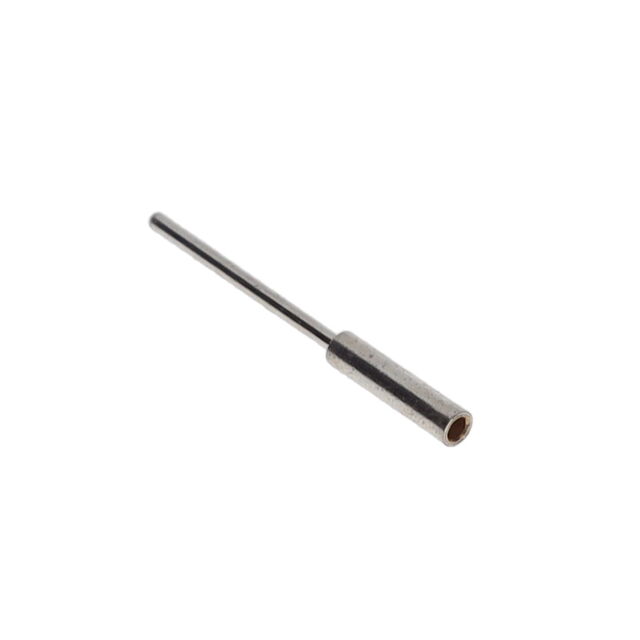

Mill-Max Manufacturing Corp. 0461-1-15-01-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-80-11-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.25 Ám	10 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0461-1-15-01-11-02-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Tin-Lead	0.38 mm	0.02 in	0.015 "		Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	2.54 µm	100 µin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper	0.51 mm
Mill-Max Manufacturing Corp. 0461-1-15-80-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper

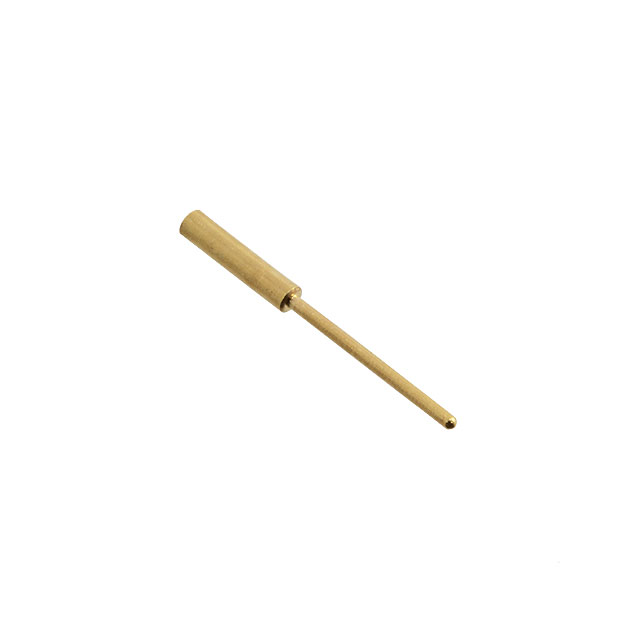

Mill-Max Manufacturing Corp. 0461-1-15-15-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	Solder	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.46 mm	0.018 in	0.02 in	0.51 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.031 in	0.79 mm	11.43 mm	0.45 in	Beryllium Copper
