SGA40U05 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

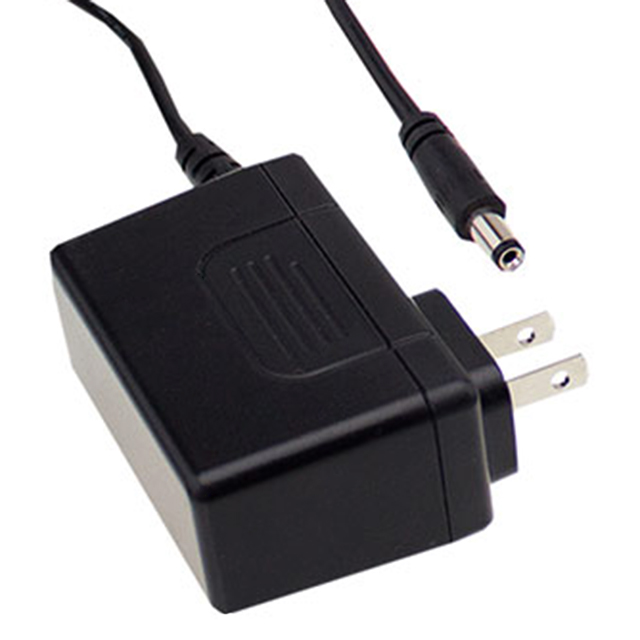

AC/DC WALL MOUNT ADAPTER 5V 25W
| Part | Region Utilized | No Load Power Consumption | Current - Output (Max) | Approval Agency | Output Connector [x] | Output Connector [diameter] | Output Connector | Voltage - Output | Input Connector | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Form | Cord Length | Cord Length | Efficiency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Polarization | Input Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | North America | 75 mW | 5 A | CB cULus | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 5 V | NEMA 1-15P | 25 W | 264 VAC | 90 VAC | Wall Mount | 1 m | 39.4 in | Level VI | ITE (Commercial) | -20 ░C | 50 °C | Positive Center | Fixed Blade | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm |
