052030 Series

Manufacturer: Molex

Catalog

CONN FPC VERT 28POS 1MM PCB

Part	Mounting Type	Flat Flex Type	Contact Finish	Connector/Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Locking Feature	Material Flammability Rating	Actuator Material	Height Above Board	Height Above Board	Number of Positions	Contact Material	FFC, FCB Thickness	Voltage Rating	Termination	Cable End Type	Number of Positions

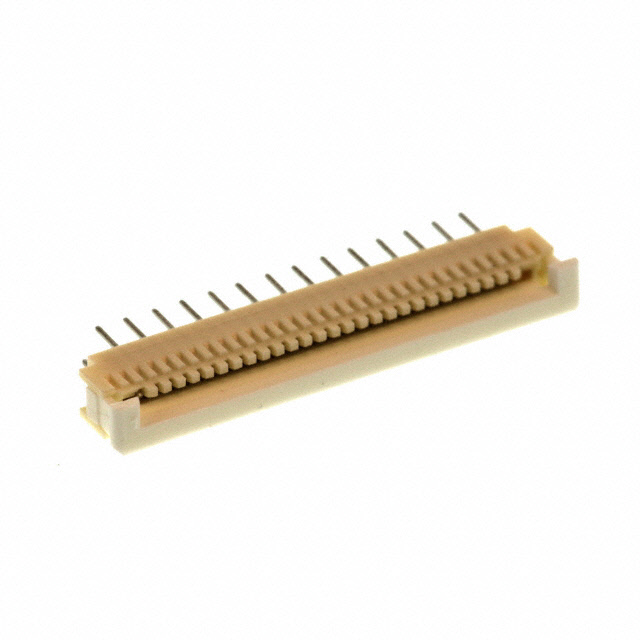

Molex 0520302829	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	28	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered

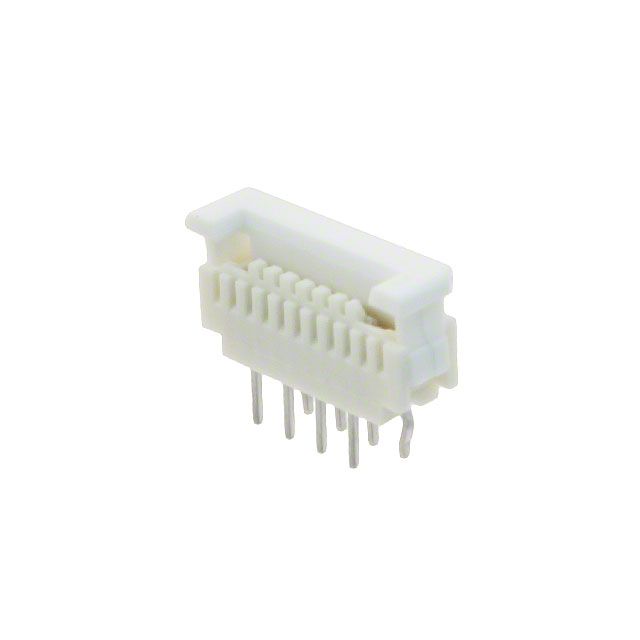

Molex 0520300829	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	8	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered

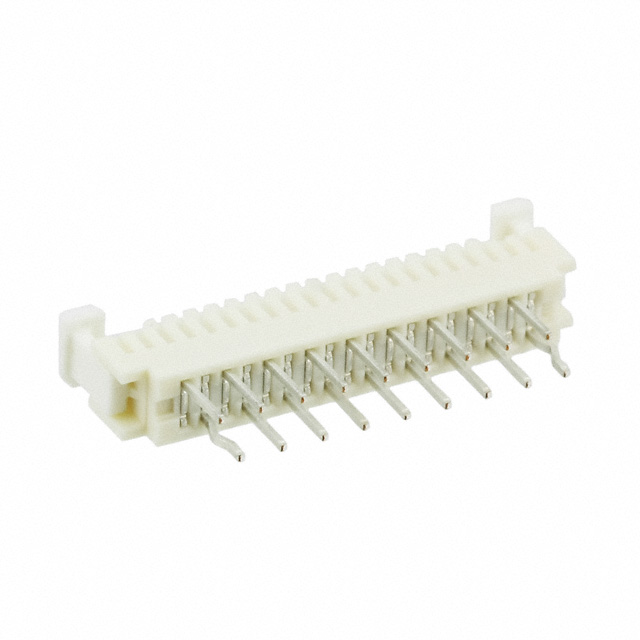

Molex 0520301829	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	18	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered

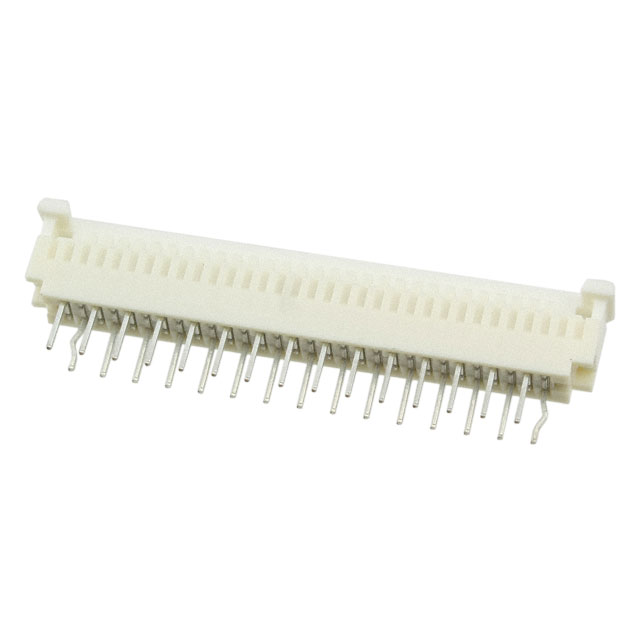

Molex 0520303029	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	30	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered

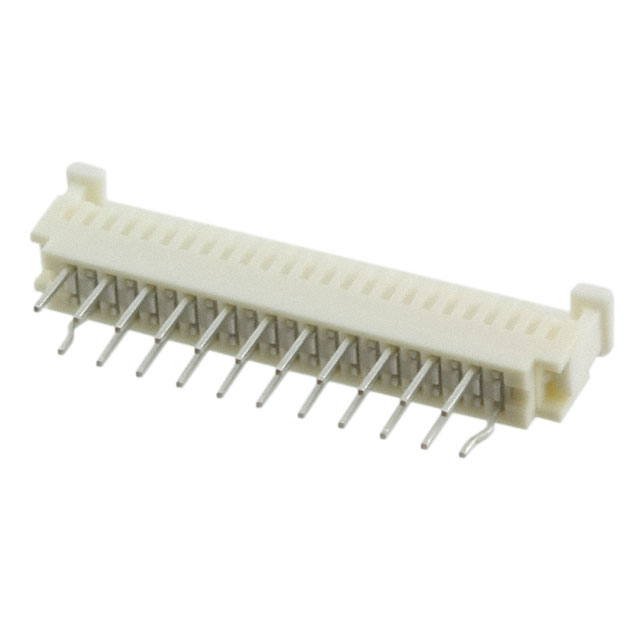

Molex 0520302229	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	22 positions	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered
Molex 0520301629	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm		Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered	16
Molex 0520300629	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	6	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered
Molex 0520301329	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	13	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered

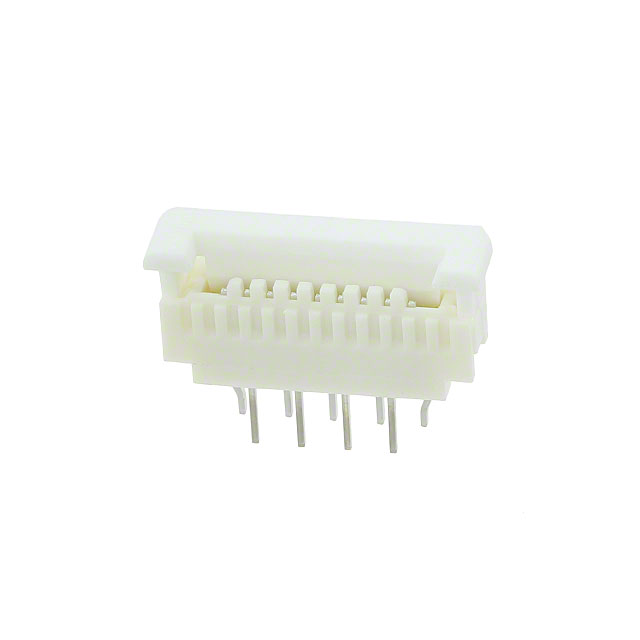

Molex 0520300929	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	9	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered
Molex 0520302629	Through Hole	FPC	Tin Bismuth	Contacts Vertical - 1 Sided	0.039 in	1 mm	-20 C	80 C	Slide Lock	UL94 V-0	Polyester	0.205 in	5.2 mm	26	Phosphor Bronze	0.3 mm	50 V	Kinked Pin	Tapered
