315-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 14POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Number of Positions	Read Out	Contact Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Features	Number of Rows [custom]	Contact Material	Contact Finish	Number of Positions/Bay/Row	Termination	Mounting Type	Gender	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]

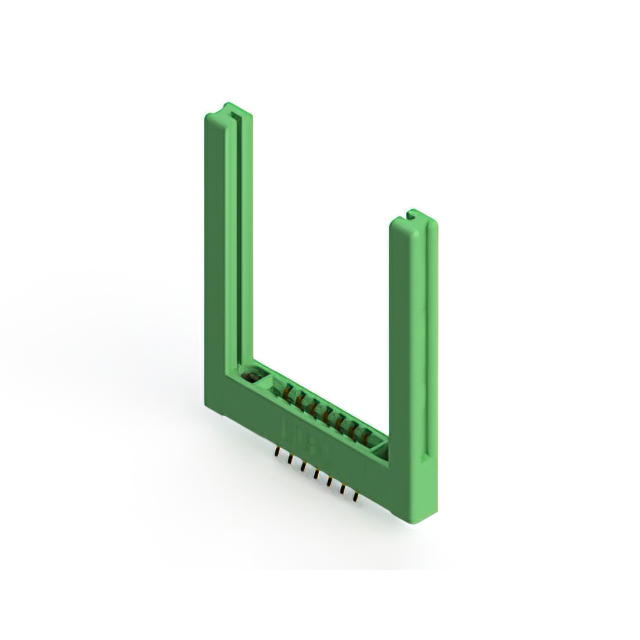

EDAC Inc. 315-014-556-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge	Card Extender Card Guides	2	Copper Alloy	Gold	7	Solder	Board Edge Straddle Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin

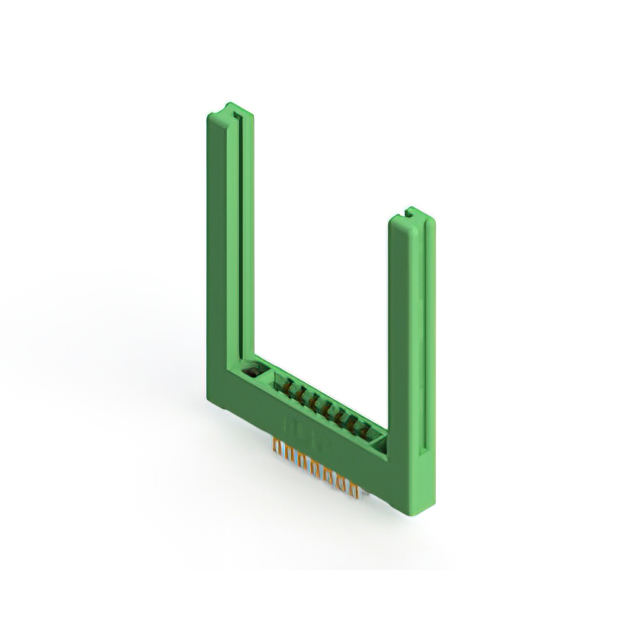

EDAC Inc. 315-014-500-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder Eyelet(s)	Panel Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin

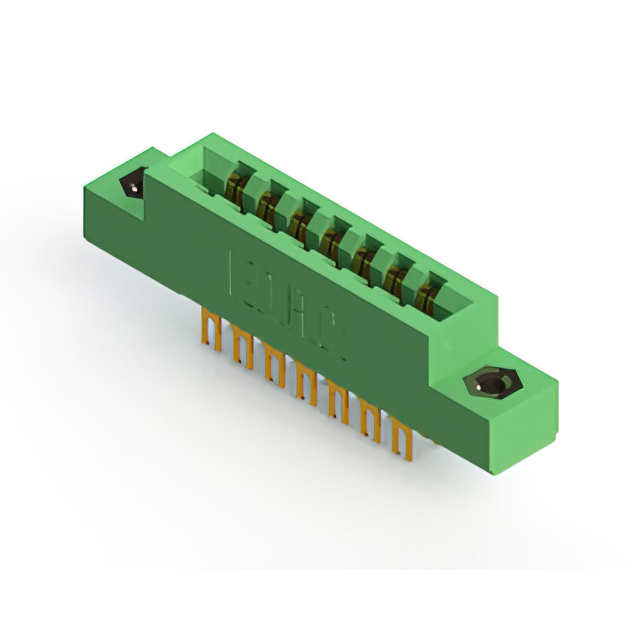

EDAC Inc. 315-014-500-208	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder Eyelet(s)	Panel Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin
EDAC Inc. 315-014-520-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder	Panel Mount Through Hole	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin
EDAC Inc. 315-014-500-268	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder Eyelet(s)	Panel Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin

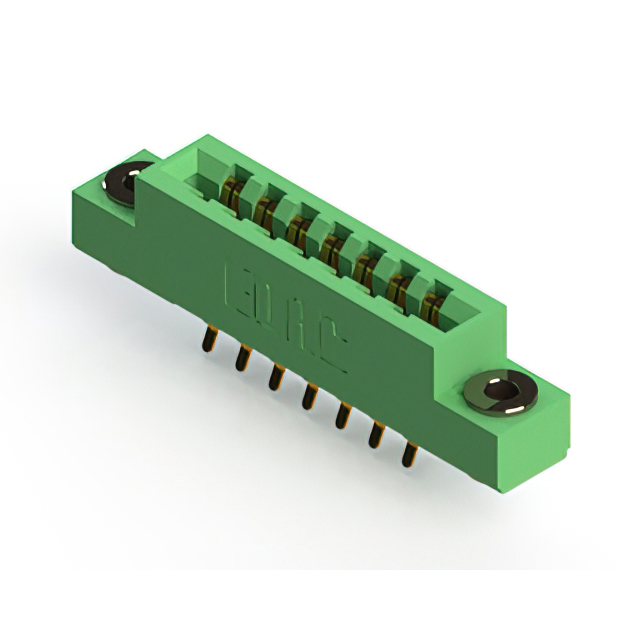

EDAC Inc. 315-014-556-203	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	Floating Bobbin Flush Mount	-40 C	105 ░C	Non Specified - Dual Edge	Card Extender	2	Copper Alloy	Gold	7	Solder	Board Edge Straddle Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin	0.116 "	2.95 mm
EDAC Inc. 315-014-520-268	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder	Panel Mount Through Hole	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin

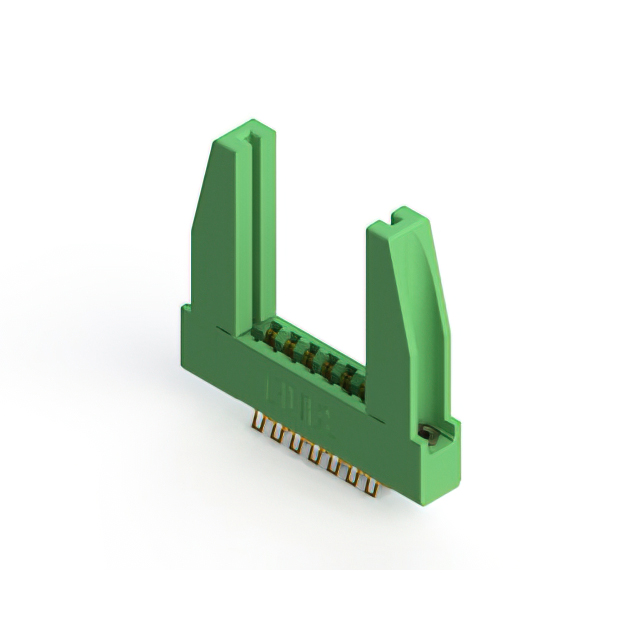

EDAC Inc. 315-014-555-278	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge	Card Extender Card Guides	2	Copper Alloy	Gold	7	Solder	Board Edge Straddle Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin

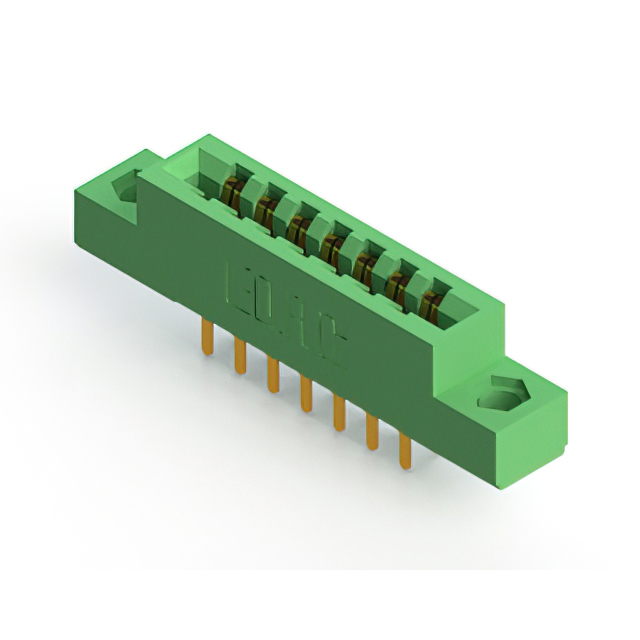

EDAC Inc. 315-014-520-204	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder	Panel Mount Through Hole	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin	0.156 "	3.96 mm
EDAC Inc. 315-014-500-207	2	Polyester Thermoplastic	3.96 mm	0.156 in	14	Dual	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	-40 C	105 ░C	Non Specified - Dual Edge		2	Copper Alloy	Gold	7	Solder Eyelet(s)	Panel Mount	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.25 Ám	10 Áin
