RFV8BGE6S Series

Super Fast Recovery Diode

Catalog

Super Fast Recovery Diode

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Package / Case	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Operating Temperature - Junction

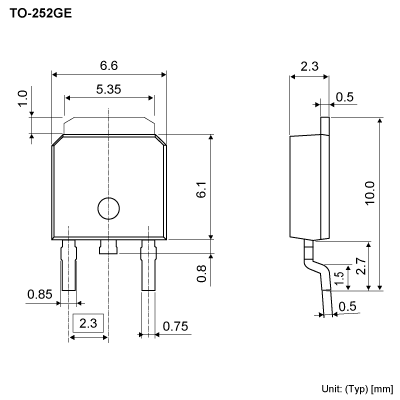

Rohm Semiconductor RFV8BGE6STL	600 V	TO-252GE	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 µA	Standard	Surface Mount	2.8 V	200 mA 500 ns	45 ns	8 A	150 ¯C

Super Fast Recovery Diode

• Hyper fast recovery / Hard recovery type, Ultra low switching loss, High current overload capacity

RFV8BGE6S is Hyper fast recovery / Hard recovery type Fast Recovery Diode for General rectification.
